Woven Wire Mesh/Wire Cloth
We manufacture wire cloth in all meshes from larger opening to fine mesh filter cloth. We produce all of weave types with various materials your applications required. DZ is happy to supply small ore larger quantity in roll stock, cut-to-size, slit rolls, aggregate screens, discs, circles, heavy woven mesh or custom weaves. Most metals and meshes are in stock.
DZ would give you the right wire cloth for industrial plants and manufacturing operations, power generation, filter manufactures, automobile manufactures and assembly etc.
Material(材料):
Copper/Brass/Bronze/Molybdenum/Nickel/Inconel/Incoloy/Monel/Silver/Platinum/Titanium/Chromium/Stainless steel/Plain steel/Steel galvanized X/Aluminum
D: wire diameter in mm.
W: mesh opening, distance in mm between two adjacent wires.
S%: working surface, approximate percentage of the total surface of the openings of a mesh.
Mesh(目数):25.4/(W+D) S=100w²/(W+D²) D:丝径(mm) W:孔径(mm)S%:筛分率
Mesh width: 0.003 to 10.70mm(other dimensions on inquiry)
Roll width: up to 6.0mm
Scope: standard roll, or customer’s requirement

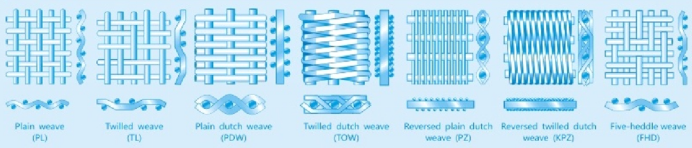

Kinds of weaving:
Plain or Twilled weave Plain or Twilled Dutch weave
Five heddle weave Reverse Plain or Twilled Dutch weave
Stainless Steel Woven Wire Mesh/ Cloth
Stainless Steel Woven Wire Mesh/ Cloth
Stainless steel woven wire mesh offer flat surface, firm structure and good integrity. It is widely used in industry, agriculture, construction, breeding, transport, mining exploitation, transport, entertainment facilities and other public places.
Materials: Stainless steel woven wire meshes are generally made of stainless steel Type 302, 304, 304L, 316, 316L, 321 and 430 etc. Many different grades of stainless are used in wire cloth.T304 is the most common one, but others are also used in specific applications
Weaving Types: Plain or Twilled Weave, Plain or Twilled Dutch Weave, Five heddle Weave, Reverse Plain or Twilled Dutch Weave
the size of the mesh , width and length.
Features
Stainless steel wire mesh have the features of wear resistance, heat-resisting, acid-resisting, alkali resisting, durable structure, and corrosion resistance.
Meantime stainless steel woven mesh also have high temperature resistance, good electric conductivity and washing resistance.
Application:
Stainless steel woven wire mesh is widly used in mining, petroleum, chemical industry, food industry , pharmaceutical industry and sifting and screening mesh in chemical and chemical fiber industry.
Specifications of Stainless Steel Woven Wire Mesh
Roll Width: 36", 40", 48", 60"
Roll Length: 25Ft, 50Ft and 100Ft
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area% |
Weight(LB) /100 Square Foot |
||
Inch |
MM |
Inch |
MM |
|||
1x1 |
0.08 |
2.03 |
0.92 |
23.37 |
84.6 |
41.1 |
2X2 |
0.063 |
1.6 |
0.437 |
11.1 |
76.4 |
51.2 |
3X3 |
0.054 |
1.37 |
0.279 |
7.09 |
70.1 |
56.7 |
4X4 |
0.063 |
1.6 |
0.187 |
4.75 |
56 |
104.8 |
4X4 |
0.047 |
1.19 |
0.203 |
5.16 |
65.9 |
57.6 |
5X5 |
0.041 |
1.04 |
0.159 |
4.04 |
63.2 |
54.9 |
6X6 |
0.035 |
0.89 |
0.132 |
3.35 |
62.7 |
48.1 |
8X8 |
0.028 |
0.71 |
0.097 |
2.46 |
60.2 |
41.1 |
10X10 |
0.025 |
0.64 |
0.075 |
1.91 |
56.3 |
41.2 |
10X10 |
0.02 |
0.51 |
0.08 |
2.03 |
64 |
26.1 |
12X12 |
0.023 |
0.584 |
0.06 |
1.52 |
51.8 |
42.2 |
12X12 |
0.02 |
0.508 |
0.063 |
1.6 |
57.2 |
31.6 |
14X14 |
0.023 |
0.584 |
0.048 |
1.22 |
45.2 |
49.8 |
14X14 |
0.02 |
0.508 |
0.051 |
1.3 |
51 |
37.2 |
16X16 |
0.018 |
0.457 |
0.0445 |
1.13 |
50.7 |
34.5 |
18X18 |
0.017 |
0.432 |
0.0386 |
0.98 |
48.3 |
34.8 |
20X20 |
0.02 |
0.508 |
0.03 |
0.76 |
36 |
55.2 |
20X20 |
0.016 |
0.406 |
0.034 |
0.86 |
46.2 |
34.4 |
24X24 |
0.014 |
0.356 |
0.0277 |
0.7 |
44.2 |
31.8 |
30X30 |
0.013 |
0.33 |
0.0203 |
0.52 |
37.1 |
34.8 |
30X30 |
0.012 |
0.305 |
0.0213 |
0.54 |
40.8 |
29.4 |
30X30 |
0.009 |
0.229 |
0.0243 |
0.62 |
53.1 |
16.1 |
35X35 |
0.011 |
0.279 |
0.0176 |
0.45 |
37.9 |
29 |
40X40 |
0.01 |
0.254 |
0.015 |
0.38 |
36 |
27.6 |
50X50 |
0.009 |
0.229 |
0.011 |
0.28 |
30.3 |
28.4 |
50X50 |
0.008 |
0.203 |
0.012 |
0.31 |
36 |
22.1 |
60X60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
60X60 |
0.007 |
0.178 |
0.0097 |
0.25 |
33.9 |
20.4 |
70X70 |
0.0065 |
0.165 |
0.0078 |
0.2 |
29.8 |
20.8 |
80X80 |
0.0065 |
0.165 |
0.006 |
0.15 |
23 |
23.2 |
80X80 |
0.0055 |
0.14 |
0.007 |
0.18 |
31.4 |
16.9 |
90X90 |
0.005 |
0.127 |
0.0061 |
0.16 |
30.1 |
15.8 |
100X100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
30.3 |
14.2 |
100X100 |
0.004 |
0.102 |
0.006 |
0.15 |
36 |
11 |
100X100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
110X110 |
0.004 |
0.1016 |
0.0051 |
0.1295 |
30.7 |
12.4 |
120X120 |
0.0037 |
0.094 |
0.0064 |
0.1168 |
30.7 |
11.6 |
150X150 |
0.0026 |
0.066 |
0.0041 |
0.1041 |
37.4 |
7.1 |
160X160 |
0.0025 |
0.0635 |
0.0038 |
0.0965 |
36.4 |
5.94 |
180X180 |
0.0023 |
0.0584 |
0.0033 |
0.0838 |
34.7 |
6.7 |
200X200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
250X250 |
0.0016 |
0.0406 |
0.0024 |
0.061 |
36 |
4.4 |
270X270 |
0.0016 |
0.0406 |
0.0021 |
0.0533 |
32.2 |
4.7 |
300X300 |
0.0051 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
Special specifications can be produced by the customer's requirements.
Quality Control
Inspection standard of the wire
We check the wire according to the national standard(GB5330-85)and our enterprise regulation about raw material defects and relative solution.
Inspection standard of the mesh
We check quality of end products according to China National Standard GB/T17492-1998, equivalent ISO9044-1990, and our standard.
The major checking items of wire mesh
First, we check the basic data: wire diameter, mesh counts, roll width and roll length
Secondly, the surface condition: opening, color, flat or not and defects.
Thirdly, the edge of wire mesh should be neat and without defects.
Checking standard if metal reed
The steel reed should be flat and clean, with correct wire going, the inside height, inside length and thickness should be correct.
General Packing

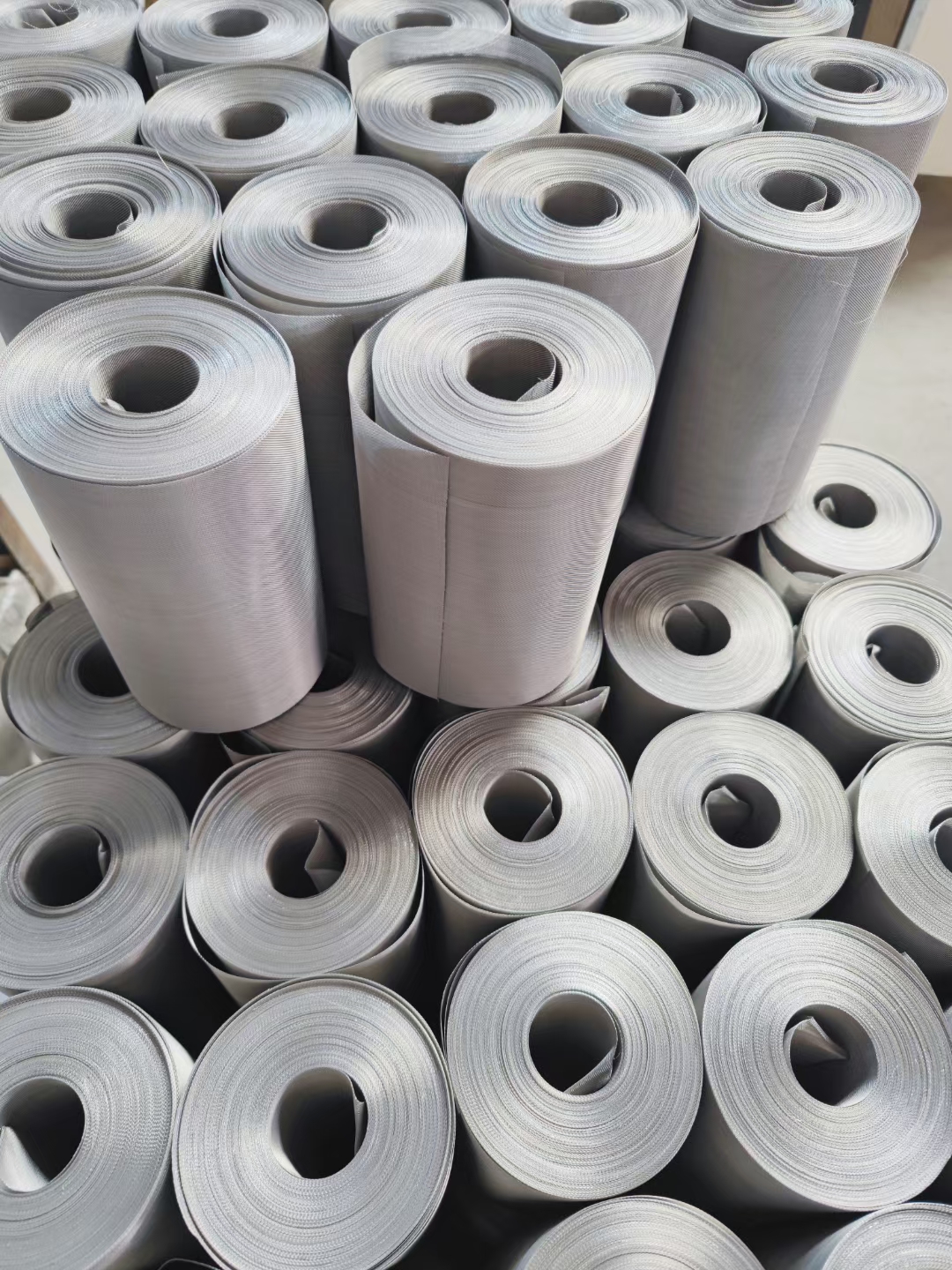

Stainless steel woven wire mesh is rolled around paper tube first, moisture-proof paper outside or plastic fabrics. Customized packing is available.
Knitted Wire Mesh
Material: stainless steel, transparent iron wire, copper wire, phosphor copper wire, nickel wire, nylon wire, polyester wire, F46 wire, polyethylene wire, metal wire and non-metal wire, etc.
Usage: Suitable for adsorption, absorption, evaporation, filtration and other processes in petroleum, oil refining, chemical industry, light industry, medicine, metallurgy, machinery, ships, automobiles and tractors, etc., to eliminate mist droplets and liquids entrained in steam or gas. foam, and used in air filters on automobiles and tractors.

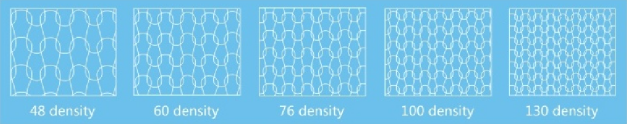

Knitted Wire Mesh is meshwork weaved in a special way. It's not only one of the mostly used component in wire-mesh demister manufacturing and other separation engineering, but also is widely used in automobile industry. With the continuous development of industry, people know more and more about the applicable fields and application scope if knitted fabric.

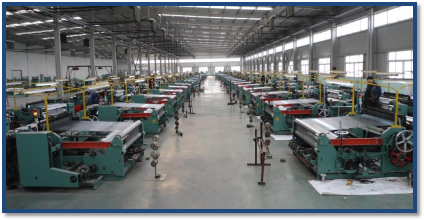

DZ owns more than 90 different types of weaving machine, which can produce with the wire diameters ranging from 0.08mm to 0.3mm, the max. width is 30 inch, the molded meshwork can be rolled to wave type. And these are kinds of materials for the clients to choose.
type |
holes No.&mesh width |
(MM) |
material |
weight(kg/sqm) |
SP |
40-100 |
0.1*0.4 |
1Cr18Ni9 |
1/0.5 |
|
60-80 |
0.1*0.4 |
1Cr18Ni9 |
1/0.5 |
|
140-400 |
0.1*0.4 |
1Cr18Ni9 |
1/0.5 |
|
40-100 |
0.27 |
Lead wire with Zn-coating |
1/0.7 |
|
40-100 |
0.1*0.4 |
Copper wire |
1/0.7 |
DP |
90-100 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
80-100 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
90-150 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
|
200-400 |
0.1*0.3 |
Stainless steel wire |
1/0.6 |
great penetration |
20-160 |
0.1*0.4 |
Stainless steel wire |
1/0.4 |
|
30-150 |
0.1*0.4 |
Stainless steel wire |
1/0.4 |
|
70-400 |
0.1*0.4 |
Stainless steel wire |
1/0.4 |
