Vapor liquid filter screen

Vapor liquid filter screen

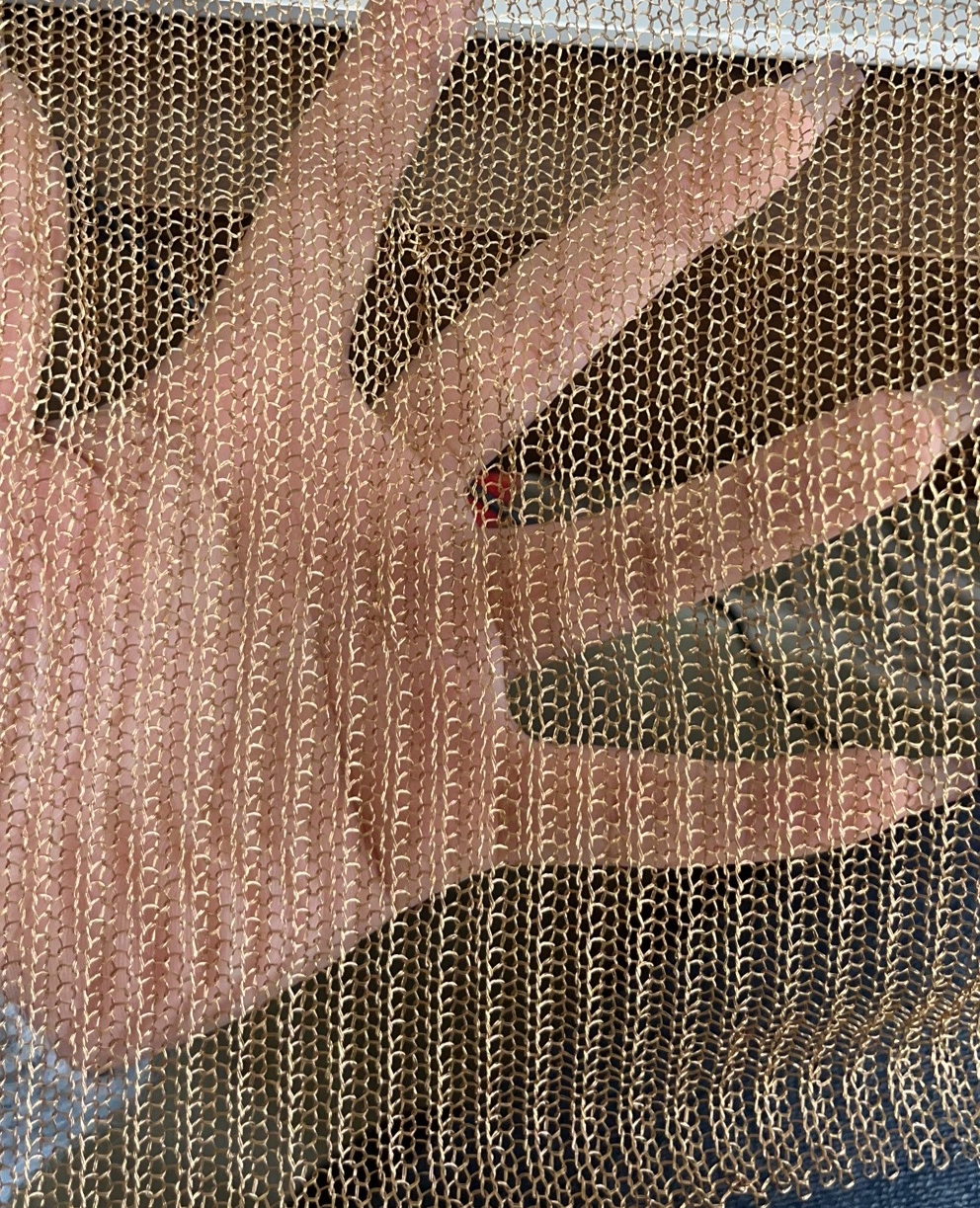

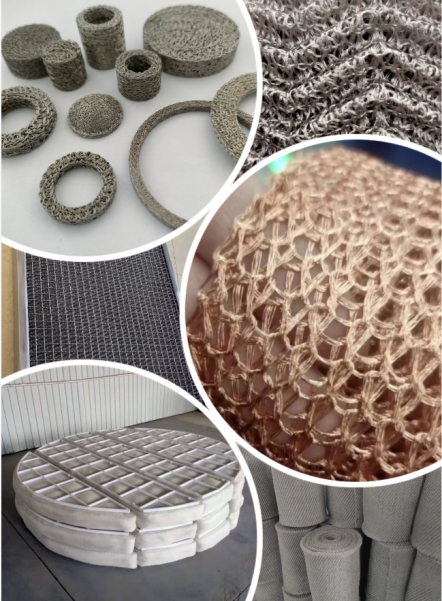

Vapour liquid filter screen, abbreviated as vapor liquid screen, also known as foam capture screen or knitted metal mesh, is a special form of woven wire mesh. It is the main component used in the production of wire mesh defoamers, oil and gas separators, dust removal, environmental protection, engine noise reduction, mechanical shock absorption and other engineering projects. It can be sandwiched in the middle of the glass, and its regular patterns are beautiful and atmospheric. Due to its dense mesh, it can be used as a breeding net to enclose small birds, and is also widely used in the automotive industry, electronics industry, and building decoration.

Wire diameter specification range: Flat or round wire with a diameter of 0.08-0.5mm. Single strand weaving, multi strand weaving, metal wire and non-metallic wire (various fibers) weaving. According to needs, various styles and specifications of ripple shapes can be made by pressing and rolling on the silk screen, such as the "human" pattern.

Opening size: From (2) × 3mm to (4) × 5mm to 12 × In addition, the opening size can be fine tuned according to customer requirements (6mm). The opening form is a cross arrangement of large and small holes (holes have the same size in the length direction but different widths), and the hole type can also be customized according to needs

Silk warp range: 0.10mm-0.55mm (commonly used warp is 0.20mm-0.25mm). In addition, multiple strands of silk are twisted together to weave.

Width range of gas-liquid filter screen:20mm-20000mm

The main materials of gas-liquid filter mesh include AISI201, 202, 301, 302, 304, 304L, 321, 316, 316L, pure nickel wire, pure titanium wire, Monel, galvanized wire, modified drawing wire, stainless steel wire and cotton wire or plastic, PP, PC, PE, PVC, PTFE.

Five Revolutionary Applications

1. Industrial Guardians

   • Refineries: >99.2% separation efficiency in oil/gas separators

   • Engine systems: PCV valve noise-reduction cores (Fig1)

2. Architectural Innovators

   • Laminated glass interlayers: Fire-rated curtain walls (Fig2)

   • Acoustic ceilings: NRC 0.75+ sound absorption

3. Environmental Solutions

   • Wastewater aeration: 40% higher COD removal with foam control

   • Air filters: 92% PM2.5 capture (multi-layer design)

4. Precision Manufacturing

   • PCB etching: Acid bath defoaming nets reducing chemical waste

   • Automotive: Fuel pre-filtration in injection systems

5. Specialized Fields

   • Nuclear plants: Radiation-resistant titanium mesh

   • Bioreactors: 316L-PTFE medical-grade antimicrobial screens
