20 Mesh Plain Weave Wire Mesh

20 Mesh Plain Weave Wire Cloth: Engineered for Accuracy, Durability, and Versatility Across Industries

In the world of industrial separation and filtration, precision is paramount. Whether you're sifting aggregates in mining or filtering catalysts in petrochemical plants, the right mesh can define your operation's efficiency and product quality. Among the myriad of options, 20 Mesh Plain Weave Wire Cloth stands out as a workhorse of reliability and performance. This article delves deep into what makes this specific mesh a preferred choice for engineers and procurement specialists worldwide.

What is 20 Mesh Plain Weave Wire Cloth?

The term "20 Mesh" refers to a wire cloth that has 20 openings per linear inch. The "Plain Weave" is the simplest and most common weave pattern, where each warp wire (lengthwise) passes alternately over and under each weft wire (crosswise). This crisscross pattern creates a strong, stable, and uniform grid, making it ideal for rigorous screening and filtration duties.

The true strength of this mesh lies in its optimized wire diameter-to-aperture ratio. With standard wire diameters ranging from 0.19mm to 0.55mm, the resulting opening size allows for the precise screening of solid particles between 0.635mm and 1.1mm. This careful balance ensures the woven structure is exceptionally robust and resistant to operational stress.

Uncompromising Quality: The 13-Step Manufacturing Process

A flat, consistent wire cloth doesn't happen by accident. Our 20 Mesh Plain Weave is the result of a meticulous 13-step manufacturing process. From selecting the finest raw materials to precision weaving, heat treatment, and final inspection, each step is designed to guarantee superior quality. This rigorous process ensures excellent surface flatness, consistent aperture size, and enhanced structural integrity, preventing wire movement and extending the screen's service life.

Technical Specifications at a Glance

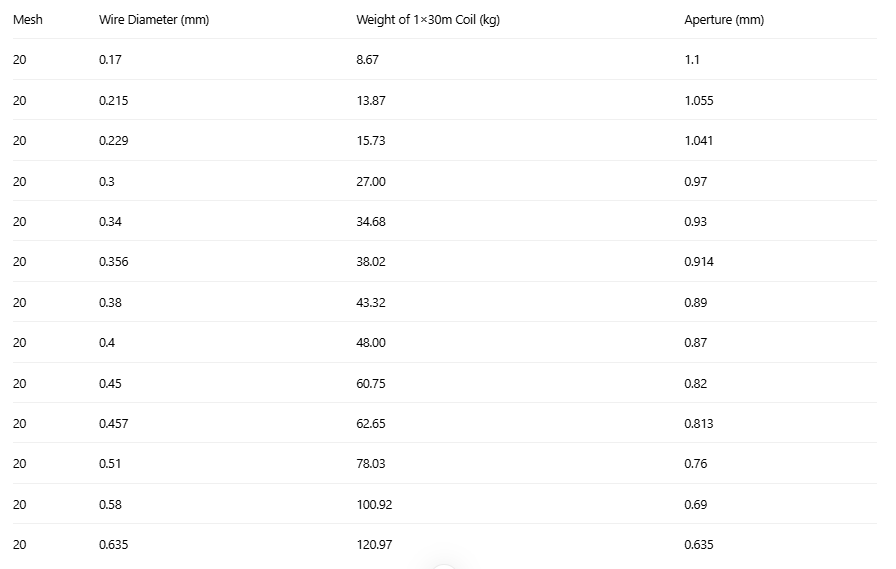

The following table outlines the key specifications for our standard 20 Mesh Plain Weave Wire Cloth, illustrating the relationship between wire diameter, opening size, and open area.

20 Mesh Stainless Steel Wire Cloth Specifications

Note: Weight per roll is calculated based on material density and may vary slightly by alloy.

The Critical Balance: Wire Diameter, Open Area & Performance

Understanding the relationship between wire diameter and open area is crucial for selecting the right mesh for your application.

• Finer wires, such as 0.17 mm, offer a greater open area ratio of approximately 75.02% (with slight variations in braid diameter), thereby increasing the filtration flow rate for both liquids and gases.

• Coarser wires, such as 0.635 mm, offer a smaller open area ratio of approximately 25% (with slight variations in braid diameter), but significantly improve the mesh's stiffness, abrasion resistance, and overall mechanical strength, making it ideal for heavy-duty screening of abrasive materials.

This versatility allows you to fine-tune your selection based on whether your priority is maximum throughput or maximum durability.

Versatile Applications Across Industries

The 20 Mesh Plain Weave Wire Cloth is a multi-functional solution deployed in numerous sectors:

• Oil, Gas & Petrochemical: Used as catalyst support media in reactors and for filtering various process fluids and gases.

• Mining & Coal: Ideal for sizing and dewatering aggregates, minerals, and coal slurry.

• Pharmaceutical & Food: Employed in screening powders, ingredients, and ensuring product purity in processing lines.

• Chemical & Fertilizer: Filters corrosive chemicals, powders, and acts as a sieve for granular products.

• Rubber, Plastic & Textile: Used to sieve polymer pellets and raw material powders.

• General Manufacturing: A go-to solution for sorting, sizing, and safety guarding in machinery.

Material Diversity for Every Environment

To meet the demands of different environments—from highly corrosive to high-temperature applications—we offer this mesh in a wide range of materials:

• Stainless Steels: 201, 304, 304L, 316, 316L, 321, 317L, 309S, 310S, 314, 430

• Copper Alloys: Brass (H80, H65), Tin Bronze (QSn6.5-0.1, QSn6.5-0.4)

• Nickel Alloys: Nickel Copper (NCu-2.5-1.5), Pure Nickel

• Ferrous Alloys: Carbon Steel (B1F, B2F)

• Light Alloys: Aluminum Alloy

Customization and Fabrication Services

We understand that off-the-shelf sizes don't always fit unique applications. That's why we offer comprehensive customization:

• Width: We can weave webs up to 3 meters wide to minimize seams. For larger requirements, panels can be expertly spliced.

• Cutting & Fabrication: We can precisely cut and fabricate the mesh into various shapes, including discs, cylinders, and custom filter elements tailored to your equipment.

DuoZhuang - Your Partner in Precision Filtration

20 Mesh Plain Weave Wire Cloth is more than just a screen; it's a precisely engineered component critical to your process efficiency. Its robust construction, versatile performance, and adaptability make it an invaluable asset across a vast industrial landscape.

Ready to specify the perfect mesh for your project? Contact our technical experts today to discuss your specific requirements for material, wire diameter, and open area. We are here to provide tailored solutions that ensure optimal performance and longevity.
