Knitted Wire Mesh: The Ultimate Guide to Properties, Applications, and Selection

Knitted wire mesh is an exceptionally versatile and resilient material, distinct from its woven counterparts due to its unique interlooping construction. This structure grants it superior flexibility, high surface area, and excellent porosity, making it a preferred choice for solving complex engineering challenges in fields ranging from heavy industry to advanced electronics. However, selecting the wrong type of mesh can lead to inefficiency, frequent replacements, and increased costs. This ultimate guide will provide a comprehensive understanding of knitted wire mesh, its advantages, and the critical factors to consider, empowering you to make the best decision for your project.

What is Knitted Wire Mesh? Beyond the Basic Definition

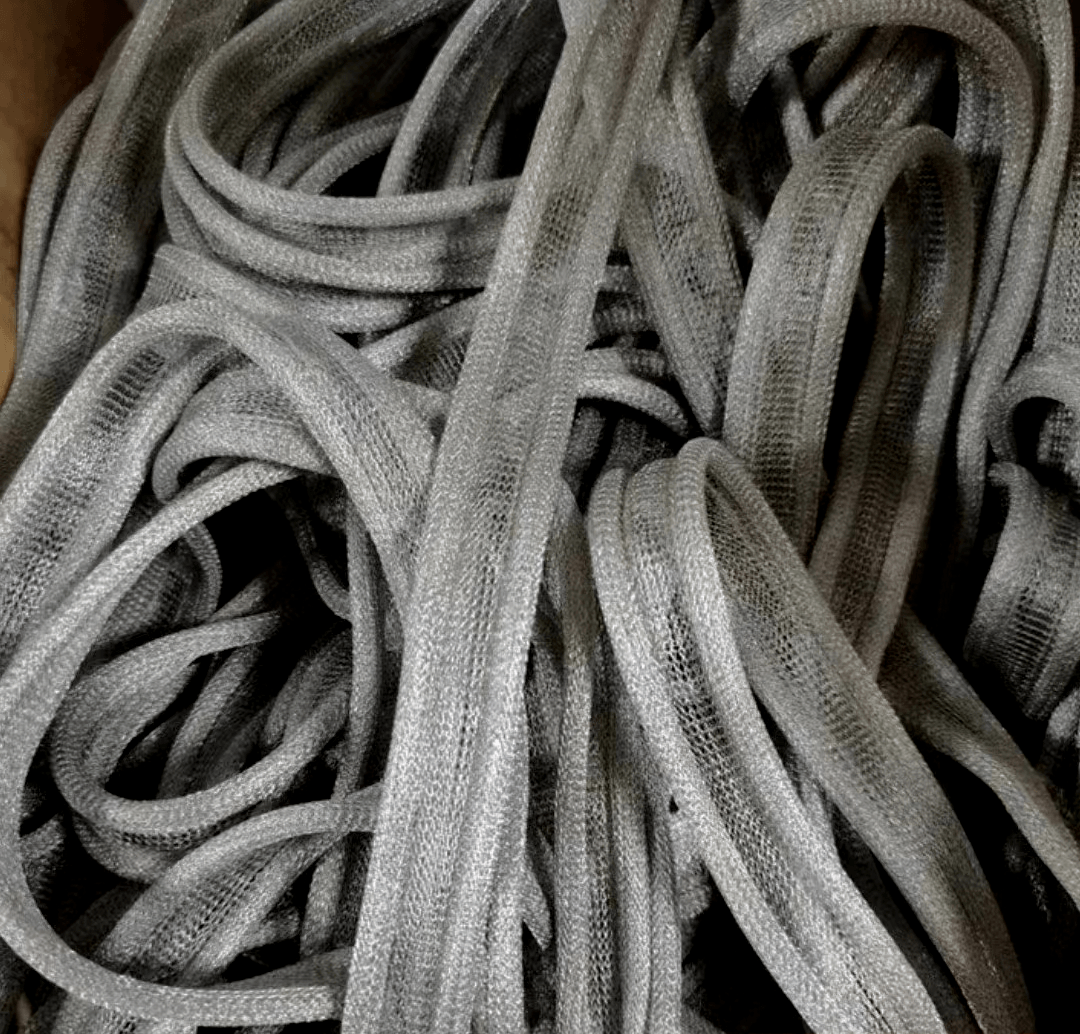

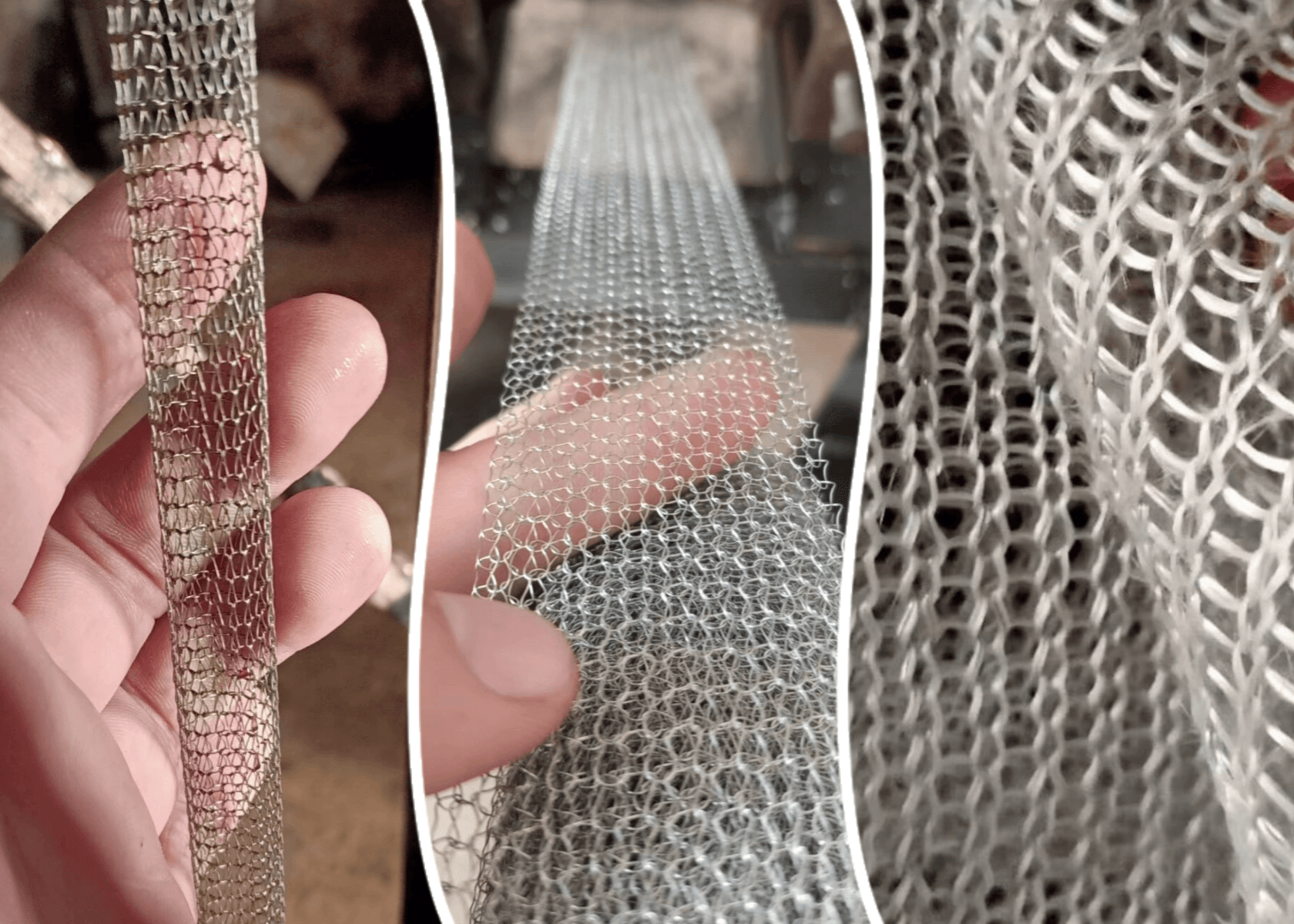

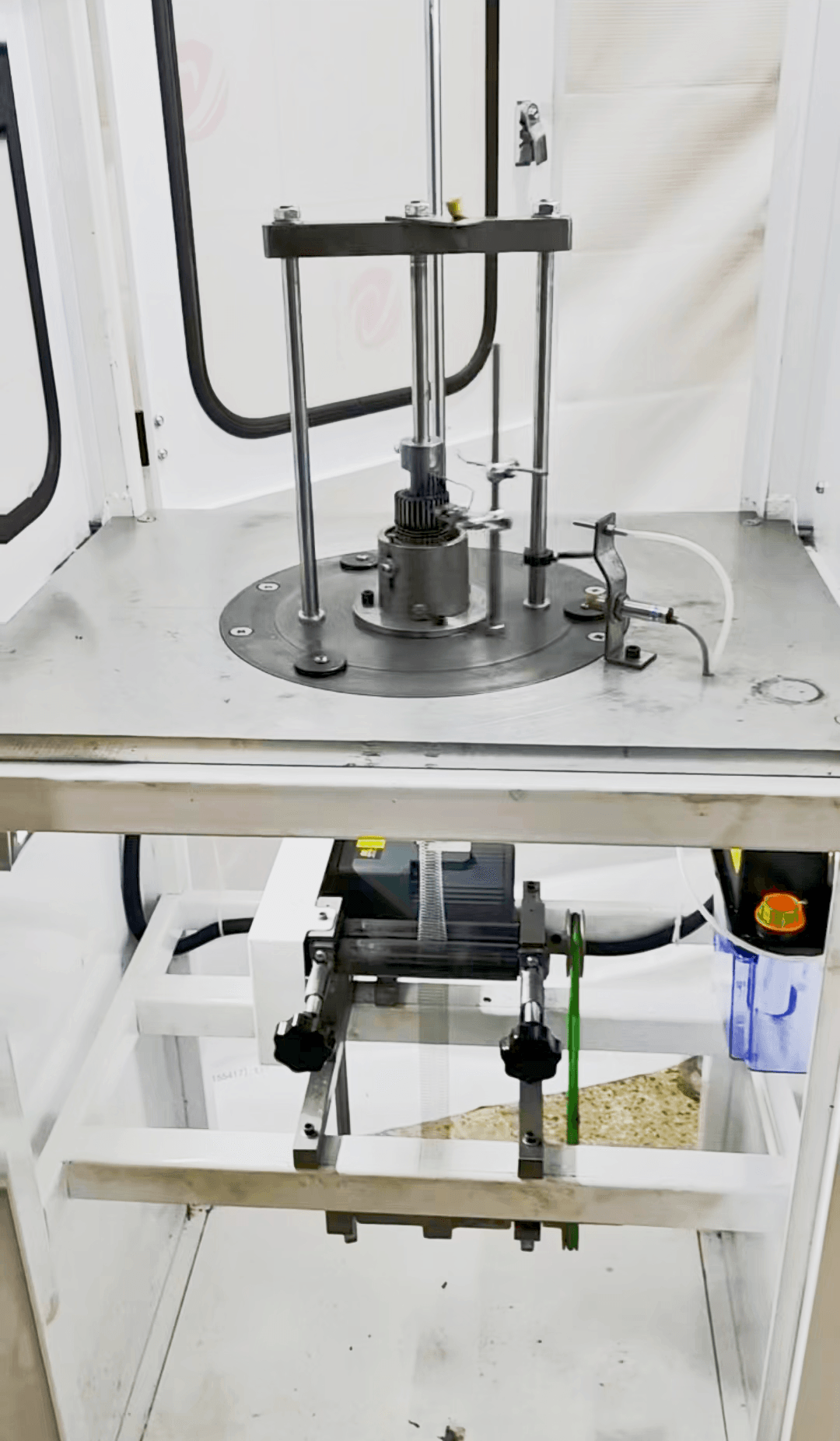

Knitted wire mesh is not produced by the traditional weaving process used in fabrics or other types of wire cloth. Instead, it is manufactured by interlooping continuous metal wires into a series of resilient loops, much like the process used in textile knitting. This creates a three-dimensional, porous structure that is highly flexible and can be easily compressed, stretched, and shaped to fill complex spaces.

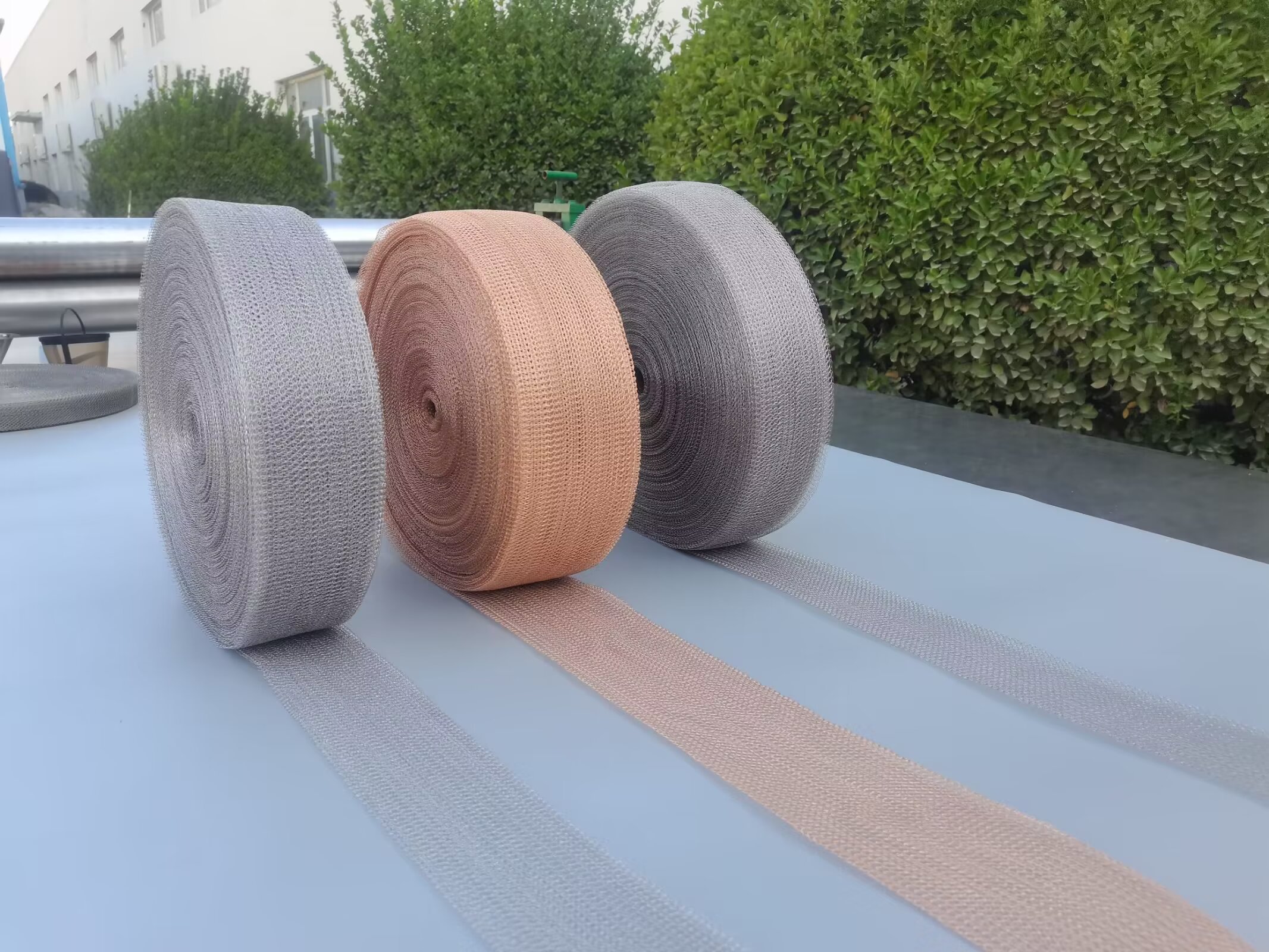

The primary value of this material lies in its structure-derived properties. It can be produced from various metal wires, including stainless steel, copper, and specialized alloys, in the form of sheets, rolls, or custom-sleeved tubes to suit a wide array of industrial applications.

Key Properties and Advantages of Knitted Wire Mesh

The unique construction of knitted wire mesh imparts a set of compelling advantages that make it indispensable in many sectors.

• Exceptional Flexibility and Resilience: Unlike rigid woven meshes, knitted mesh can be bent, compressed, and twisted without permanent deformation. It can recover its original shape after compression, making it ideal for sealing and gasketing applications.

• High Surface Area and Porosity: The interlooped loops create a vast internal surface area within a compact volume. This makes it exceptionally effective for applications requiring high filtration efficiency, gas dispersion, or supporting catalyst materials.

• Excellent Thermal and Electrical Conductivity: Being made of metal, knitted wire mesh inherits the conductive properties of its base material, allowing for effective heat dissipation and electrical grounding.

• Outstanding Sound and Vibration Dampening: The dense, looped structure effectively absorbs acoustic energy and mechanical vibrations.

• High Customizability: Key parameters such as wire material, diameter, mesh density, and overall thickness can be tailored to meet specific performance requirements, offering engineers a high degree of design freedom.

Common Materials: Choosing the Right Wire for Your Environment

Selecting the correct material is the most critical step in ensuring your knitted wire mesh performs as expected and achieves its design life. The base material dictates the mesh's resistance to corrosion, temperature, and wear. The following table provides a clear comparison to guide your initial selection.

Beyond Metals: High-Performance Polymer Meshes

For applications where metal is unsuitable due to extreme corrosion or the need for non-conductivity, we also offer high-performance polymer knitted meshes.

• PP Knitted Wire Mesh: Constructed from polypropylene monofilament, this mesh offers outstanding resistance to a wide range of corrosive chemicals, including acids and alkalis. It is a cost-effective solution for filtration and demisting in the chemical and food processing industries.

• PTFE Knitted Mesh: Made from Polytetrafluoroethylene, this material is virtually chemically inert and can withstand continuous temperatures up to 260°C. It is the ideal choice for mist elimination in aggressive environments like industrial flue gas desulfurization systems and demanding pharmaceutical processes.

Industrial Applications of Knitted Wire Mesh

The unique combination of properties makes knitted wire mesh a critical component across a diverse range of industries.


Reinforcement and Protective Applications

• Cargo Security: Knitted wire mesh is laminated onto truck side curtains, creating a flexible, knife-resistant barrier that deters theft without restricting access or movement.

• Anti-Vandal Seating: Bonded with fabrics like Aramid cloth or PVC, it creates durable, cut-resistant upholstery for public transportation, significantly extending the seat's lifespan.

• Lightweight Protective Clothing: When combined with materials like Kevlar, it adds a layer of metal mesh protection for cut-resistant apparel.

• Insulation Jackets: The mesh can be attached to the inside or outside of insulation jackets to protect against wear, tear, and external elements, using materials like 304 or 309 stainless steel based on the environment.

Filtration and Separation

• Grease Filters: Multi-layers of aluminium, galvanized, or stainless steel crimped knitted mesh are enclosed in frames to create grease filters for commercial kitchen hoods. They offer low resistance with high efficiency in eliminating entrained grease and fat, reducing fire hazards.

• Mist Eliminators/Demisters: In process operations, knitted wire mesh demister pads are essential for removing entrained droplets from vapour flows in industries like pharmaceuticals, petrochemicals, and chemicals. They can effectively remove droplets as fine as 3μm to 5μm.

• Process Filtration: Used as filter elements and pads for various industrial gas and liquid separation and filtering applications. PTFE knitted mesh is particularly used in aggressive environments like flue gas desulfurization.

Functional and Specialty Applications

• EMI/RFI Shielding: Knitted meshes made from copper, Monel, and other conductive metals are used to create effective shields that protect sensitive electronic equipment from electromagnetic and radio-frequency interference. Its flexibility allows it to tightly conform to irregular surfaces.

• Aviary and Enclosure Mesh: Made from stainless steel, this nearly invisible mesh is safe for birds (avoiding zinc poisoning) and is anti-corrosive, making it ideal for long-lasting outdoor and zoo enclosures.

• Sealing and Gasketing: The material's flexibility and resilience allow it to create effective seals in high-temperature and high-pressure environments where traditional rubber gaskets would fail.

• Hose Braids and Liner Seals: Used as a robust, flexible reinforcement or seal in industrial hoses.

• Cleaning Applications: Knitted wire cleaning balls are used for cleaning mechanical parts, soldering irons, and even kitchenware due to their abrasive yet non-damaging structure.

How to Select the Right Knitted Wire Mesh: A Buyer's Checklist

Choosing the correct knitted wire mesh is crucial for project success. Use this checklist to guide your selection process:

1. Define the Primary Application: What is the main function? (e.g., Filtration, damping, shielding, reinforcement, sealing?)

2. Analyze the Operating Environment: What are the temperature extremes? Is there exposure to corrosive chemicals, moisture, or abrasive materials?

3. Determine Material Requirements: Does the application require corrosion resistance, electrical conductivity, or high-temperature strength? Refer to the material table above.

4. Specify Wire Diameter and Knit Density: Thicker wires and a tighter knit generally offer greater durability and finer filtration, while thinner wires and a looser knit provide more flexibility and higher flow rates.

5. Decide on the Form Factor: Do you need sheets, rolls, sleeves, custom die-cut parts, or pads of specific dimensions?

Why Partner with Duozhuang for Your Knitted Wire Mesh Needs?

At Anping Duozhuang Metal Wire Mesh Factory, we are more than just a manufacturer; we are your technical partner in solving complex industrial challenges. Our expertise in crafting high-quality knitted wire mesh ensures that you receive a product that precisely matches your specifications.

• Deep Expertise: With years of experience, we understand the nuances of different applications, from reinforcement to filtration, and can provide expert guidance.

• Full Customization: We offer tailored solutions, allowing you to specify the exact material, wire diameter, density, and form factor you need.

• Rigorous Quality Assurance: Our products are manufactured to the highest standards, ensuring consistent performance and reliability.

• Global Support: We serve a worldwide clientele, providing reliable logistics and technical support wherever you are.

Ready to find the perfect solution for your project? Contact us today to request a free sample or consult with our technical experts.
