Demystifying Mesh Calculation Formulas: A Practical Guide for Engineers

​​Precision wire mesh selection is the backbone of effective filtration, screening, and separation. While basic formulas exist, real-world engineering demands understanding their limitations, the impact of weave patterns, and a systematic approach to managing tolerances. This definitive guide delivers:

• Essential ​​mesh calculation formulas​​ for aperture and open area.

• Extensions to complex weaves (Dutch/Reverse Dutch).

• A practical error-analysis framework.

• A step-by-step design-validation workflow.

​​
Core Terminology: A Shared Vocabulary

• ​​Mesh Count:​​ Openings per linear inch (starting point, but incomplete).
• ​​Wire Diameter:​​ Thickness of individual wires (impacts strength and aperture).
• ​​Aperture:​​ Clear distance between adjacent wires (defines particle retention).
• ​​Open Area Percentage:​​ Ratio of total open space to mesh area (predicts flow/efficiency).
• ​​Weave Pattern:​​ Interlacing of warp/weft wires (Plain, Twill, Dutch)—shapes performance.

​​Foundational Formulas (Plain Square Weave Only)​​

​​Formula 1: Calculate Aperture​​

• ​​Formula:​​ Aperture (μm) = (25,400 / Mesh Count) - Wire Diameter (μm)
• ​​Units Rule:​​ Mesh Count = per inch; Wire Diameter/Aperture = micrometers (μm).
• ​​Example:​​ 60 Mesh, 200 μm wire diameter:
  Aperture = (25,400 / 60) - 200 = ​​223.33 μm​​
• ​​Warning:​​ Fails for non-square pores (e.g., Dutch weaves)—requires specialized methods.

​​Formula 2: Calculate Open Area​​

• ​​Formula:​​ Open Area (%) = [Aperture / (Aperture + Wire Diameter)]² × 100
• ​​Units Rule:​​ Aperture/Wire Diameter = same unit (μm/mm).
• ​​Example:​​ 223.33 μm aperture, 200 μm wire diameter:
  Open Area = [223.33 / (223.33 + 200)]² × 100 ≈ ​​27.8%​​

​​Formula 3: Mesh-to-Micron Approximation (Estimate Only)​​

• ​​Formula:​​ Microns ≈ 15,000 / Mesh Count

• ​​Red Flag:​​ Ignores wire diameter—never use for final specs.

  ​​

Beyond Plain Weave: Dutch & Complex Weaves​​

• ​​Key Difference:​​ These weaves use thick/fine wires to create tapered, non-square pores—optimized for strength + fine filtration.
• ​​Our Expertise:​​ Duozhuang provides empirically derived spec sheets for TDW/RDW, including nominal filter ratings. Consult our engineers for data formulas can’t capture.

​​Error Analysis: From Theory to Real-World Performance​​

• ​​Total Uncertainty = Manufacturing + Installation + Environment​​
  1. ​​Manufacturing Tolerances (Δd):​​ Wire diameter variations (e.g., ±5 μm on 200 μm wire).
  2. ​​Tensile Deformation:​​ Stretching during installation alters aperture.
  3. ​​Thermal Expansion:​​ Temperature changes affect dimensions.
• ​​Simple Error Propagation:​​
  For wire diameter tolerance (Δd), aperture uncertainty = ±Δd.
  Example:223.33 μm aperture → ​​218.33–228.33 μm​​ (with ±5 μm wire tolerance).

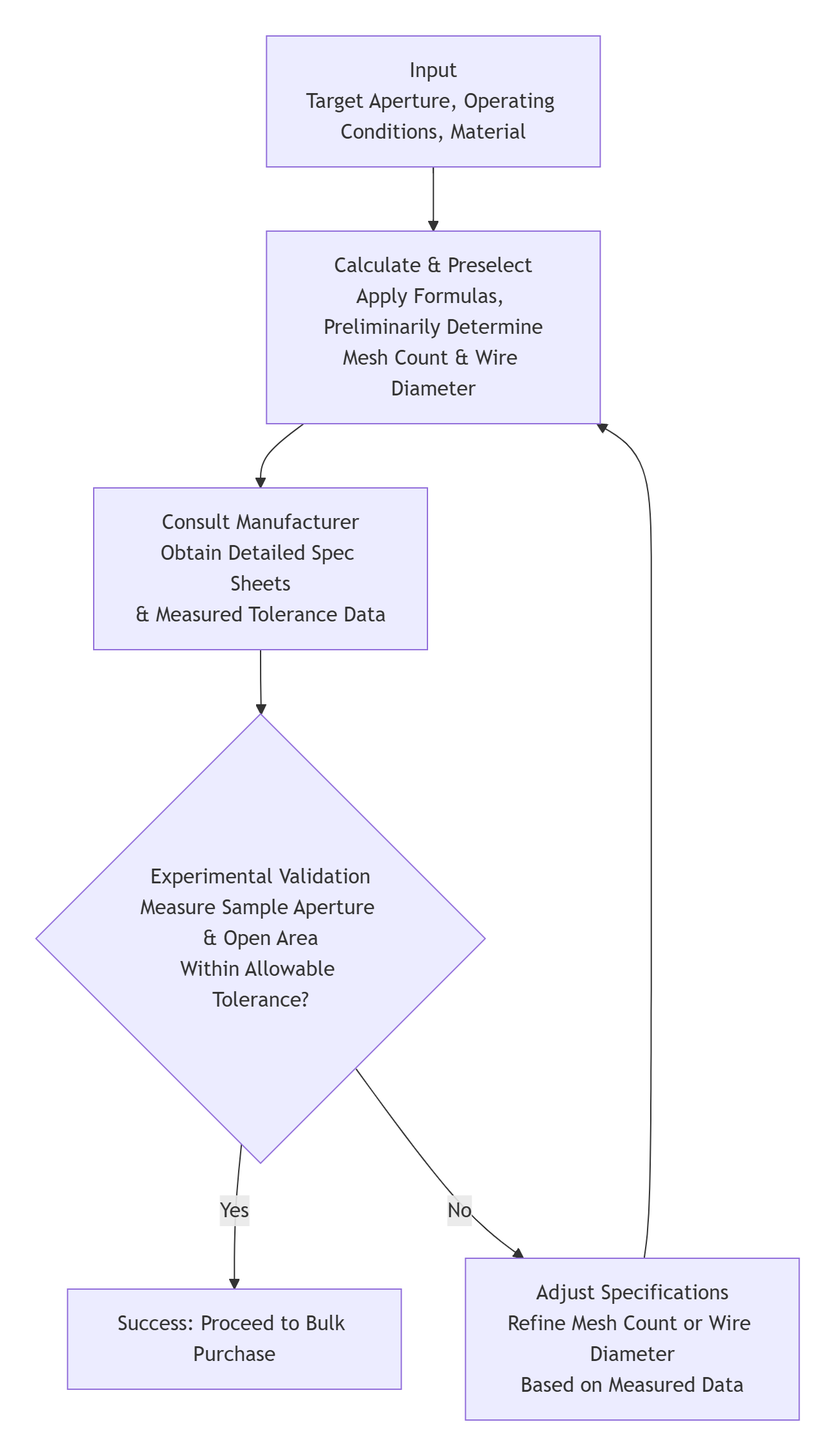

​​Practical Workflow: From Design to Validation​​【New + English Flowchart】

​​Engineer's Quick-Check List​​

• Have I defined the ​​maximum allowable aperture​​?
• Did I specify the ​​weave type​​ (Plain, Dutch)?
• Did I account for ​​wire diameter tolerance​​ in aperture calculations?
• For critical apps: Will I request ​​sample testing​​ to verify?
• Did I consult the manufacturer for ​​complex weaves/custom needs​​?

​​Your Partner in Precision: Duozhuang​​

• ​​Precision Manufacturing:​​ Tight tolerances on wire diameter/weave—we deliver what we promise.
• ​​Expert Guidance:​​ Technical support from selection to validation, including data for Dutch weaves.
• ​​Custom Solutions:​​ We weave mesh to your exact specs when standards fall short.

​​Resources & Next Steps​​

• ​​Quick-Reference Table:​​ Common Plain Weave Mesh Counts & Theoretical Apertures.
• ​​Free Online Calculator:​​ Automate Plain Weave formulas.
• ​​Comprehensive Spec Sheets:​​ Manufacturer-backed data for all products (including Dutch weaves).
• ​​Engineer Consultation:​​ For complex projects or guaranteed performance.
