Reverse Dutch Weave Mesh: A Technical Guide to RPD and TRD for Extreme Filtration

When filtration challenges involve extreme pressure, abrasive polymer melts, or continuous automated systems, a basic understanding of Reverse Dutch Weave isn't enough. Engineering success requires a deeper dive into its two main types: Reverse Plain Dutch Weave (RPD) and Reverse Twilled Dutch Weave (TRD). This advanced guide moves beyond simple definitions to explore the specific mechanical properties, filtration characteristics, and ideal applications for RPD and TRD meshes. Whether you're designing a filter leaf for backwashing or specifying belts for an auto-screen changer in plastic extrusion, understanding this distinction is key to selecting the optimal mesh for unparalleled performance and durability.

1. Beyond the Basics: Reverse Plain Dutch (RPD) vs. Reverse Twilled Dutch (TRD)

As established, Reverse Dutch Weave is defined by its use of thicker warp wires for strength and finer weft wires for filtration. However, the pattern in which these wires are interwoven creates two distinct variants with unique advantages.

• Reverse Plain Dutch Weave (RPD): This is the most common type. Each weft wire passes alternately over and under each warp wire in a simple, regular pattern. This creates a very stable and rigid mesh with a square pore structure. RPD is renowned for its high mechanical strength and precise, consistent surface filtration.

• Reverse Twilled Dutch Weave (TRD): In this weave, each weft wire passes over two and under two warp wires in a staggered pattern. This "twill" pattern creates a more flexible and drapable mesh compared to RPD. The trade-off is a slightly larger, more tortuous pore path, which can be beneficial for certain depth-filtration scenarios. TRD belts are exceptionally well-suited for applications requiring conformity and excellent tracking on automated screen changers.

Choosing Between RPD and TRD:

• Choose RPD for maximum rigidity, surface filtration, and particle retention stability in high-pressure filter leaves and vessels.

• Choose TRD for flexibility, durability, and superior performance on continuous belt systems like auto-screen changers in plastic extrusion.

2. The Engineering Advantages: Why Reverse Dutch Weave Excels

The combination of thick warps and fine wefts, whether in RPD or TRD form, delivers critical benefits:

• Unmatched Pressure Resistance: The heavy warp wires act as a superstructure, preventing collapse under high differential pressure, a common failure point for standard meshes.

• Absolute Surface Filtration: Particles are captured on the smooth surface created by the fine weft wires, minimizing deep blinding and enabling effective backwashing.

• High Flow Efficiency: The structure provides a large open area, allowing for high flow rates with a lower pressure drop than sintered meshes.

• Durability in Abrasive Service: The robust construction, especially in RPD, offers excellent resistance to wear from abrasive polymer melts or slurries.

3. Duozhuang's Reverse Dutch Weave Capabilities & Specifications

As a leading manufacturer, Duozhuang produces both RPD and TRD meshes to meet precise industrial demands. We control every aspect of production, from raw material to final inspection.

Key Specifications & Customization:

• Materials: Primarily Stainless Steel 304, 316, 316L, with options for Nickel, Monel, and other special alloys for corrosive environments.

• Weave Types: Reverse Plain Dutch Weave (RPD) and Twilled Reverse Dutch Weave (TRD).

• Standard Widths: From 67mm up to 400mm, with maximum widths up to 5000mm available upon request.

• Filter Ratings: We produce a wide range, from coarse 400-micron ratings down to fine 35-micron ratings .

4. Critical Applications: Where RPD and TRD Mesh Shine

Our Reverse Dutch Weave meshes are the solution of choice in demanding industries:

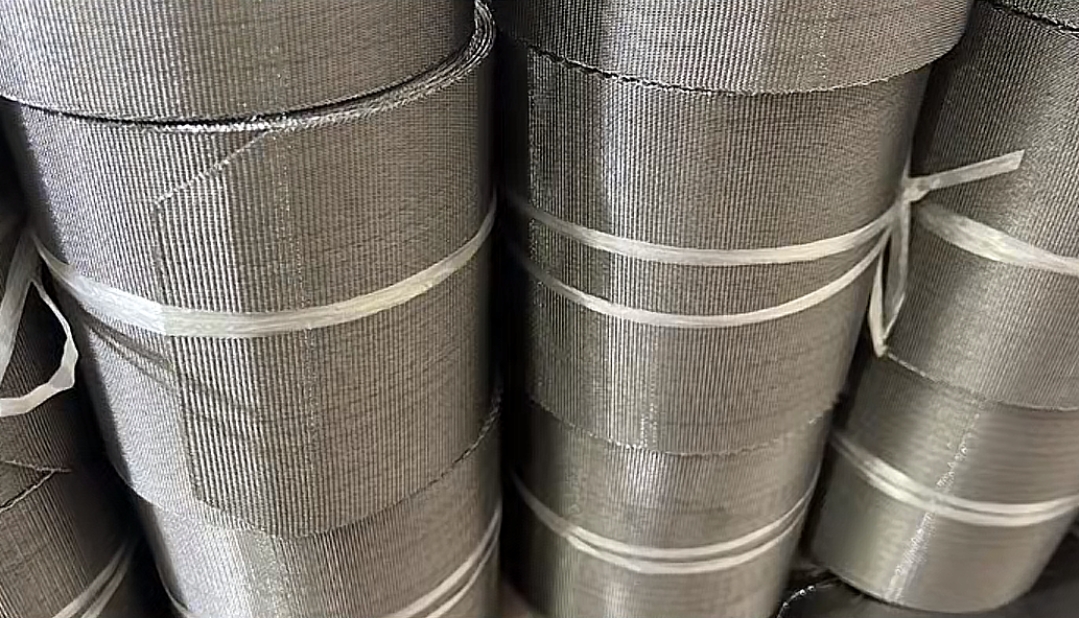

• Polymer & Plastic Processing: The premier choice as filter belts for auto-screen changers in extrusion. The high warp strength handles pressure, while the smooth surface filters polymer melts. TRD's flexibility is often preferred for its tracking performance.

• High-Pressure Liquid Filtration: Used in filter leaves for hydraulic oil, fuel, and chemical processing under pressure, where RPD's rigidity ensures long-term stability.

• Belt Filters for Continuous Operation: The mesh's strength and cleanability make it ideal for continuous belt filters in various industrial processes.

5. Partner with a Technical Manufacturer

Selecting the right weave (RPD or TRD), material, and specification is critical. Duozhuang's expertise ensures you get a tailored solution, not just an off-the-shelf product.

We provide:

• Technical Consultation to select the optimal weave and specs for your application.

• Precision Manufacturing with tight tolerances on pore size and wire diameter.

• Custom Slitting, Welding, and Edging to create ready-to-install filter belts.

Engineer Your Solution with Duozhuang

Leverage our manufacturing expertise to solve your most complex filtration challenges. Request a custom quote for your specific requirements or download our detailed technical datasheet to see the full range of our Reverse Dutch Weave capabilities.

Contact us today to discuss your project with our filtration engineers.
