Solving Modern Cable Challenges: How Welded Wire Mesh Cable Trays Prevent Overheating & Reduce Costs

Across global data centers, enclosed cable trays silently throttle innovation. When server rack densities exceed 20kW, trapped heat elevates cable temperatures to 90°C+ – triggering 30% premature equipment failure (Uptime Institute). This thermal crisis exemplifies why welded wire mesh cable trays are becoming the engineering imperative for mission-critical infrastructure

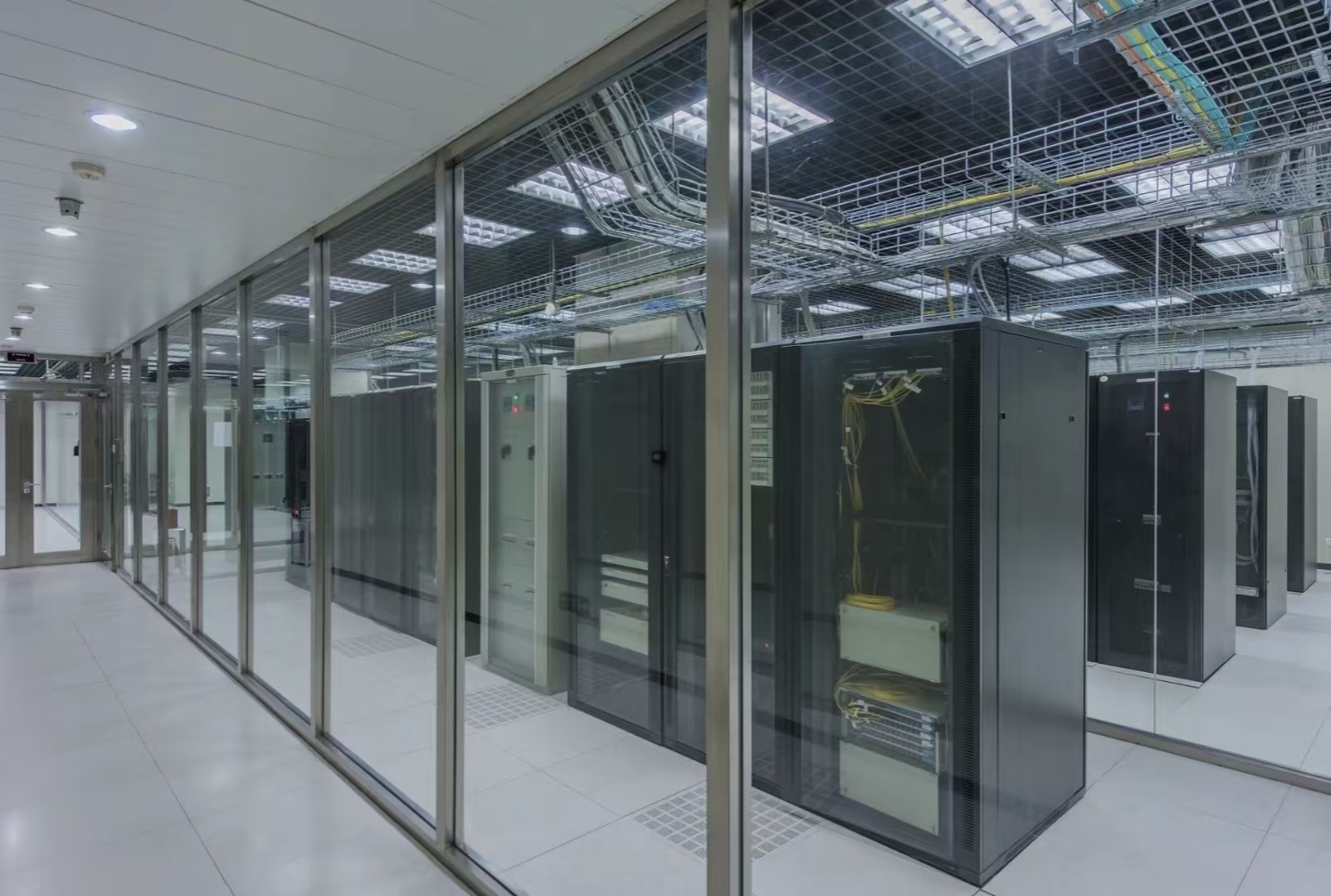

1. The Overheating Crisis in Data Centers

High-density server racks (20kW+/rack) face cable temperatures exceeding 90°C – reducing equipment lifespan by 30% (Uptime Institute, 2024). Duozhuang’s solution:

• 50×100mm open grids enable 18°C average temperature drop vs. enclosed trays (ISO 7779 thermal tests)

• Natural convection airflow eliminates hotspots, maintaining ≤45°C surface temps at 80% load

2. Industrial Durability Under Extreme Stress

Chemical plants report 42% faster cable degradation due to vibration + corrosion. Our response:

• 4-6mm Q235B/316SS wires withstand >500kg point loads (JB/T 10216-2013 certified)

• Salt spray resistance: 1,000 hours for hot-dip galvanized trays; 2,500+ hours for 316 stainless steel

• Vibration damping: Open-grid design absorbs 30% more shock than solid trays (ASTM E756 tests)

3. Installation Flexibility: Cutting Retrofit Costs

Traditional tray installations waste 40+ labor hours in complex spaces. Duozhuang’s advantages:

• Field-modifiable: Cut/bend on-site without specialized tools

• Zero custom fittings: Saves $35/meter vs. prefabricated elbow systems

• Vertical space savings: 60% thinner profile than ladder trays (50mm height vs. 120mm)

4. Lifecycle Cost Efficiency

Enclosed trays incur 23% higher lifetime costs (NAHB, 2025). Our engineered savings:

• Material reduction: Uses 37% less steel than perforated trays

• Maintenance: 90% faster fault detection with open visibility

• Transport: 3-ton trucks carry 2.8x more mesh trays than solid alternatives

Industry-Specific Applications

FAQ: Technical Insights from Duozhuang Engineers

Q: What is the maximum voltage supported by open mesh trays?
A: For safety compliance, we recommend:

• ≤1kV applications: Standard mesh trays (no modifications)

• >1kV systems: Add arc-flash rated covers (tested to IEEE 1584)

Q: How does your tray design prevent corrosion in chemical plants?
A: Our 3-tier protection system:

1. Material: 316 stainless steel with ≤0.03% sulfur (prevents stress corrosion cracking)

2. Welding: MIG-processed seams resist pH 2-12 chemical exposure

3. Coating: Optional epoxy spray adds 200μm barrier layer (ISO 12944 C5-M certified)

Q: Can trays be modified on-site for tight spaces?
A: Yes.  We Welded Wire Mesh Cable Trays:

• Cut with standard bolt cutters (no plasma tools needed)

• Bend manually up to 45° without load capacity loss

• Reconfigure via modular connectors (saves 90% vs. custom fittings)

Q: What seismic rating do your trays achieve?
A: All trays exceed IBC 2018 Category D requirements:

• Vertical load: >500kg static / 1.2x dynamic

• Horizontal displacement: <3mm at 0.3g acceleration

Q: Do you support curved ceiling installations?
A: Yes. Our on-site bending jigs achieve 15°-45° angles without strength loss.

Why Duozhuang?

• Material Science: Q235B/304/316SS with ≤0.03% sulfur (prevents stress corrosion)

• Custom Engineering: Laser-cut prototypes in 72 hours

• Global Compliance: CE, UL, GOST-R certified

• Sustainability: 89% recycled steel content
