The $1.8M Problem: How Filter Clogging Cripples Wastewater Operations

Unexpected wedge wire filter failures cost industrial plants $45,000–$120,000 per shutdown due to halted production, emergency maintenance, and discharge violations. Clogging causes 40–70% flow reduction within hours when solids, oils, or biofilms jam critical 50–3000µm slots. With 74% of failures traced to preventable causes, understanding these five root issues is essential for operational continuity.

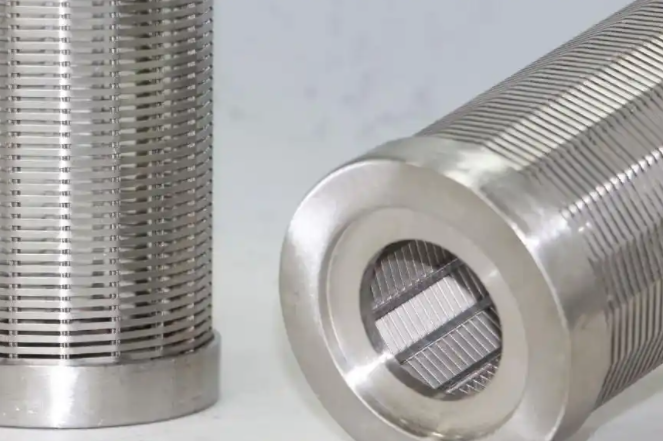

Wedge Wire Filter Element

Cause 1: Solids Overload & Slot Bridging

The Problem

High-turbidity wastewater (>200 NTU) causes rapid slot bridging, where particles larger than gaps arch over openings, while finer particles internally pack wedge profiles. Food processing plants report 4-hour clog cycles when potato starch (25–500µm) overloads 100µm slots.

Wedge Wire Solutions

  • Optimized V-Wire Geometry: Specify 30°–60° apex angles and tapered slot designs (wider internally than externally) to prevent bridging.

  • Graded Multi-Layer Builds: Outer 1000µm slots trap coarse debris; inner 100µm layers capture fines—boosting dirt capacity 5x vs. single-layer screens.

  • Pulsed Air Scour Systems: 6–8 bar bursts every 30 minutes dislodge packed solids without manual intervention.

Cause 2: Fibrous & Hairline Fouling

The Problem

Textile, paper, or food wastewater containing fibers >2mm wraps around support rods, creating dense mats that resist backwash. One municipal plant saw 80% flux drop from hair/fiber entanglement in 200µm slots.

Wedge Wire Solutions

  • Anti-Wrap Rod Designs: Hexagonal or star-shaped rods minimize surface contact for fibers.

  • Rotary Self-Cleaning Systems: Motorized brushes (30–60 RPM) continuously sweep slot surfaces.

  • Directional Slot Orientation: Vertical slots (vs. horizontal) exploit gravity for debris shedding.

Cause 3: Oil/Grease Adhesion

The Problem

Hydrocarbons coat stainless steel wires, binding solids into cement-like cakes. Meat processing plants battle grease fouling requiring weekly $8k cleanings.

Wedge Wire Solutions

  • Hydrophobic Coatings: PTFE-modified surfaces achieve 120° contact angles—slashing oil adhesion by 85%.

  • Hot Alkaline Backwash: 70°C, pH 12 flushes dissolve lipids without damaging 316L/304SS wires.

  • Air Knife Integration: 0.5mm slot-width systems use 10-bar air jets to shear off sticky residues.

Cause 4: Biofilm & Microbial Growth

The Problem

Bacteria colonize wedge profiles within 72 hours, secreting EPS slime that traps particles. Biofilms reduce flow by 50% while accelerating corrosion.

Wedge Wire Solutions

  • Copper-Alloyed Wires: Cu-infused 316L (UNS S32615) inhibits 99% biofilm formation.

  • UV-C Integration: 265nm LEDs mounted on filter housings disrupt microbial DNA replication.

  • Ozone Backwash: 1–2 ppm ozonated water oxidizes EPS matrix monthly.

Cause 5: Mineral Scaling & Crystallization

The Problem

Calcite/silica scales nucleate on wire surfaces in high-hardness water (>500 ppm CaCO₃), narrowing slots irreversibly.

Wedge Wire Solutions

  • Scale-Inhibiting Alloys: Super duplex steels (UNS S32750) resist pH 1–14 environments.

  • Electropolished Surfaces: Mirror finishes (Ra <0.4µm) delay scale adhesion by 200%.

  • Low-Frequency Ultrasonics: 25–40 kHz vibrations prevent crystal nucleation.

Duozhuang’s Anti-Clogging Engineering

Our wedge wire filters solve these issues through precision design:

  1. Material Science: 304/316L/2205 stainless steels or titanium-clad wires for corrosion resistance.

  2. Geometry Optimization:

    • Slot sizes: 50–3000µm (continuous or profiled)

    • Asymmetric V-wires for self-cleaning turbulence

    • No internal weld points to eliminate dead zones

  3. Intelligent Cleaning:

    • IoT-enabled ΔP sensors triggering adaptive backwash

    • Integrated CIP systems with chemical dosing

Duozhuang’s Wedge Wire Performance Data
Clogging Cause Standard Screen Life Duozhuang Optimized Life
Solids Overload 2–6 months 4+ years
Fibrous Fouling 1–3 months 3+ years
Oil/Grease 3–8 weeks 18+ months
Biofilm 2–4 months 5+ years
Scaling 1–4 months 3+ years



Solve your toughest clogging challenges:
Request a Custom Wedge Wire Solution
Send your wastewater specs (TSS, oil content, pH) for a clog-resistant design.
