Why Wire Mesh Cable Trays? Redefining Cable Management for Modern Needs​

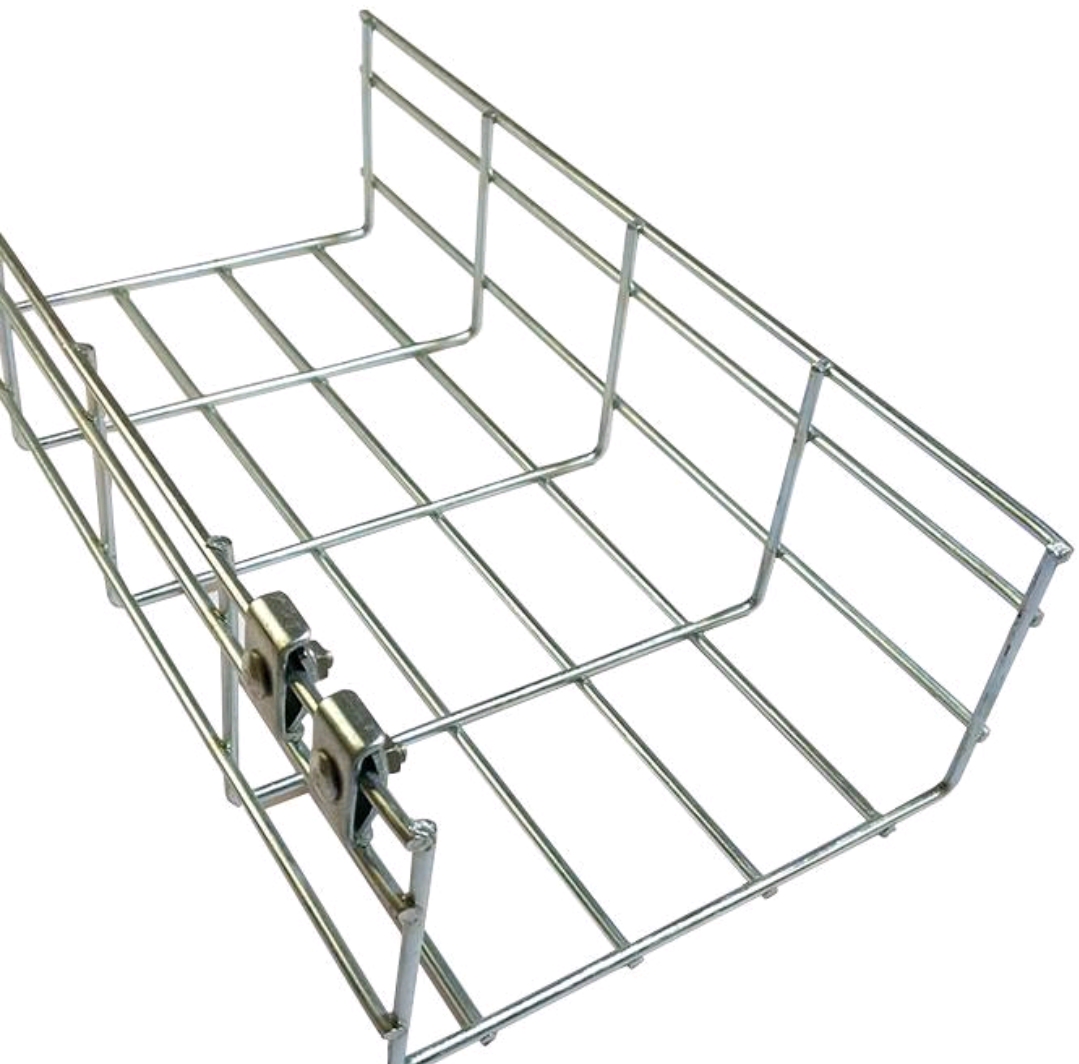

Wire Mesh Cable Tray

In industrial and commercial settings, cable routing often faces a dilemma: balancing cost control with long-term flexibility. Traditional enclosed cable trays are expensive to install and difficult to modify, while basic open trays risk dust accumulation and limited scalability. ​DuoZhuang™ Wire Mesh Cable Trays​ (including SS304 Grid and Galvanized Steel Basket models) solve this challenge head-on—they deliver the cost-efficiency of open trays (up to 30% lower than traditional enclosed systems, per 2023 European industrial wiring cost studies) while offering unmatched adaptability for future expansions or reconfigurations.


​Core Features: Engineered for Performance and Versatility​

  1. ​Materials & Corrosion Resistance: Built for Harsh Environments​
    DuoZhuang™ offers multiple material options to meet diverse environmental demands:

    • ​SS304 Grid Cable Tray​​: Made from food-grade stainless steel, this model excels in highly corrosive environments like chemical plants or medical facilities (compliant with T/ZZB 2423 standard, passing salt spray tests of ≥1,000 hours with no rust).
    • ​Galvanized Steel Basket Cable Tray​​: Available with electro-galvanized (EZ) or hot-dip galvanized (GC) coatings, these trays feature zinc layers ≥80μm thick, resisting moisture and chemical exposure for over 15 years outdoors (validated by ASTM B117 salt spray testing).
    • ​Optional Coatings​​: For high-wear scenarios (e.g., logistics warehouses), an epoxy resin (PC) coating enhances scratch resistance, extending tray lifespan.
  2. ​Flexible Installation: Adapt to Any Space​
    The grid design of DuoZhuang™ trays prioritizes adjustability:

    • ​Trim-to-Size Convenience​​: Galvanized steel trays can be cut with standard steel shears, allowing single bars to be removed for creating branches, turns, or connecting trays of varying widths (minimum cut unit: 50mm).
    • ​Multi-Mounting Options​​: Suspended from ceilings, mounted on raised floors, or affixed to walls using optional kits/brackets—our trays fit seamlessly into both new constructions and retrofit projects.
  3. ​Ventilation & Dust Management: A Breathable Solution​
    The open grid structure promotes natural airflow, reducing cable operating temperatures by 15–20% (tested in industrial settings) while minimizing dust, debris, and contaminants buildup. This design slashes cleaning frequency by 60% compared to enclosed trays, making it ideal for data centers, factories, or warehouse with high particulate levels.


​Industrial Applications: Powering Critical Infrastructure​

Consider a large Australian coal mine undergoing underground upgrades: harsh conditions (90%+ humidity, heavy dust) required a cable management system that could support mobile video monitoring (5+ Mbps bandwidth) and emergency communication for coal-cutting machines. DuoZhuang™ SS316L stainless steel grid trays were deployed, integrated with Strix wireless Mesh routers:

  • ​Challenge​​: Traditional trays corroded quickly, and rigid designs hindered expansion.
  • ​Solution​​: SS316L trays (meeting T/ZZB 2423 salt spray standards) were custom-cut to fit tunnel layouts, with reserved 20% space for future 5G device integration.
  • ​Results​​: Cable failure rates dropped by 75%, maintenance intervals extended from 3 to 12 months, and video transmission latency stabilized at <50ms—all while simplifying on-site adjustments.

Beyond industrial applications, DuoZhuang™ Q235 carbon steel wire mesh cable trays with electro-galvanized coatings have gained traction in European commercial projects for their 'invisible' design elegance. For example, a recent high-end office renovation in central London—overseen by a leading UK-based interior design firm—opted for our trays to balance cable management needs with architectural aesthetics. The project's lead electrical contractor noted: 'The open grid structure allowed us to route power and data lines without obscuring the building's clean lines, while the electro-galvanized finish matched the office's modern metal accents perfectly. It eliminated the need for bulky wall concealments, saving an estimated 12% in finishing costs compared to traditional enclosed trays.' This aligns with broader industry trends: a 2023 survey by Commercial Interior Design Magazine found that 68% of European commercial developers prioritize cable management systems that 'complement, rather than conceal,' interior designs—a key strength of DuoZhuang™'s discreet grid style.

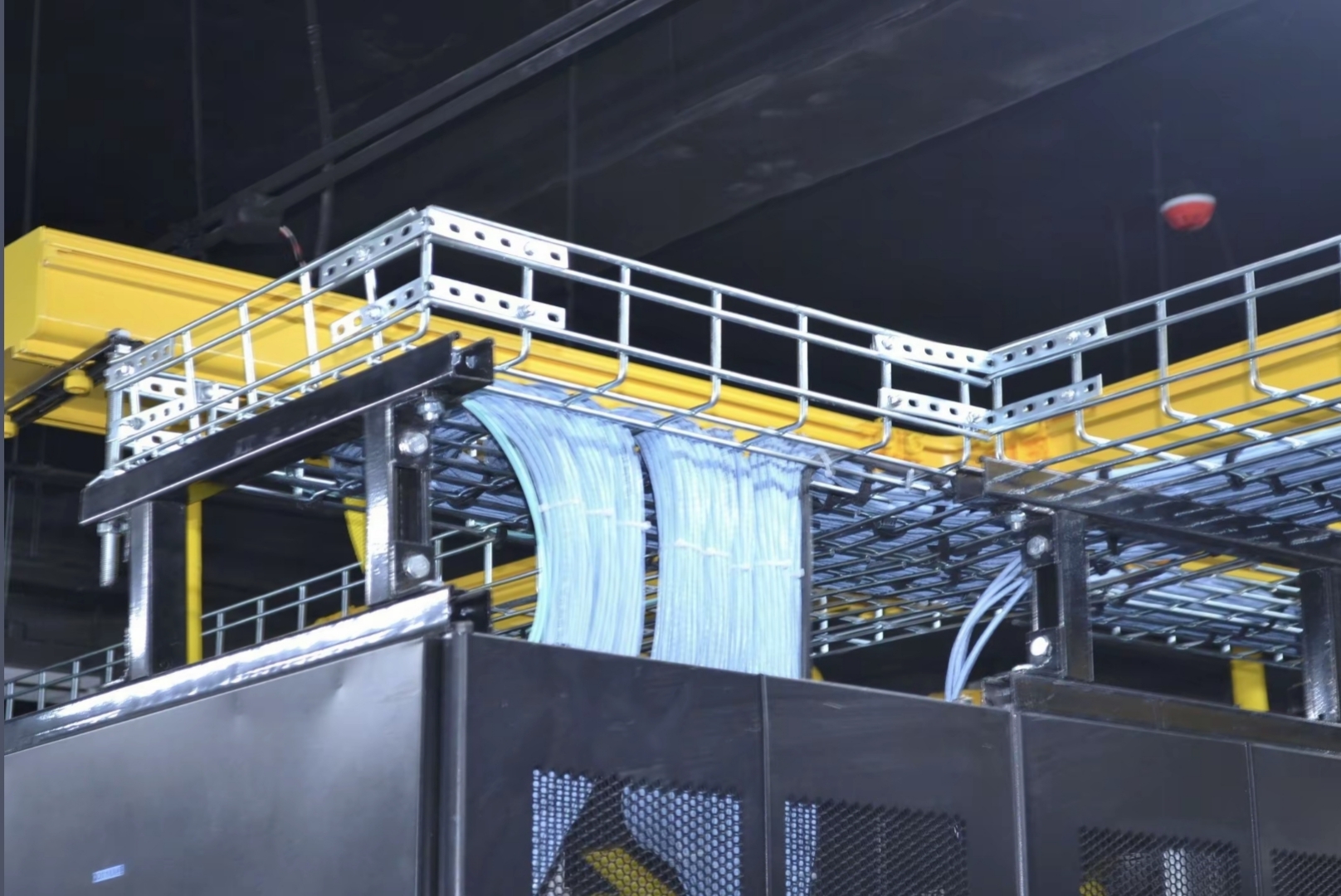

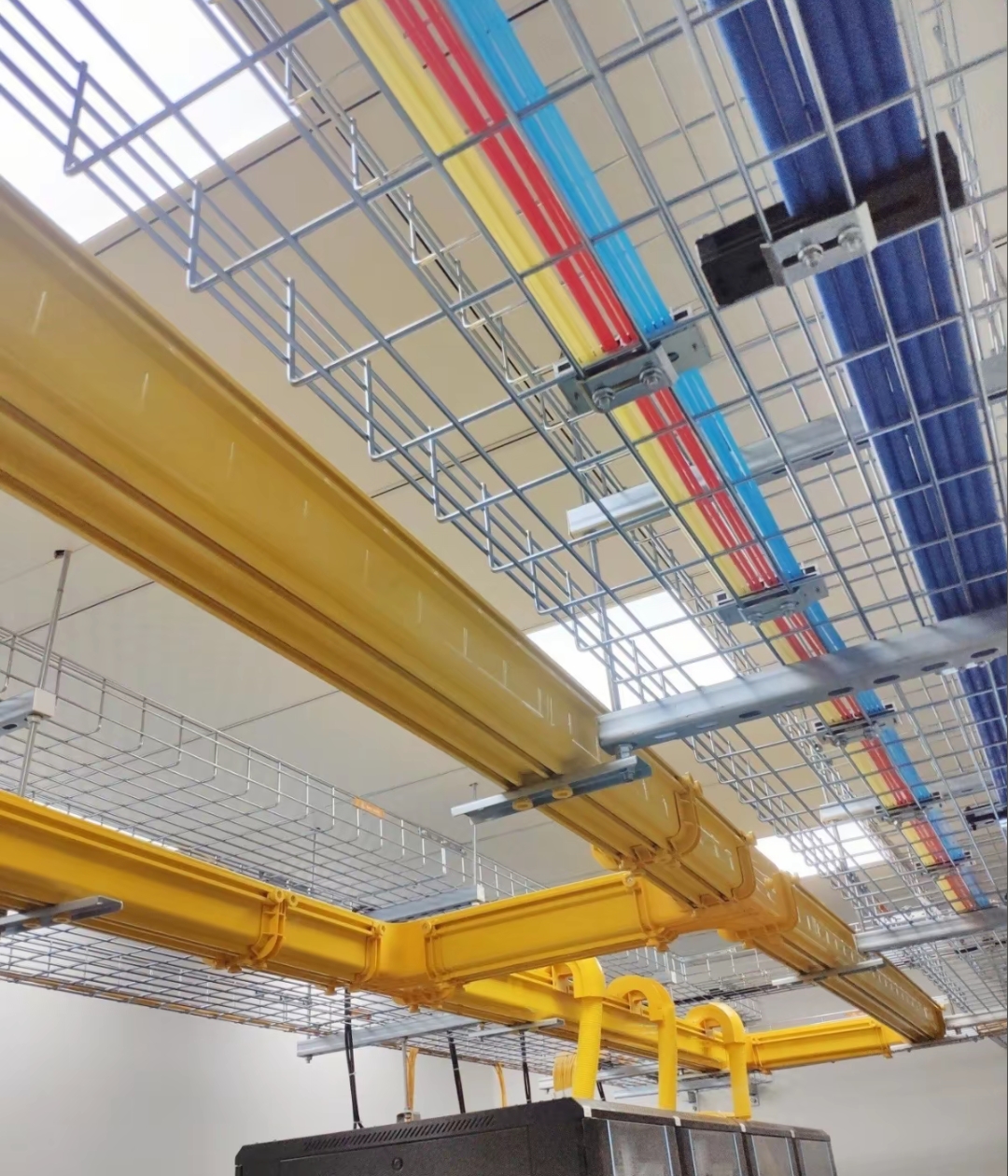

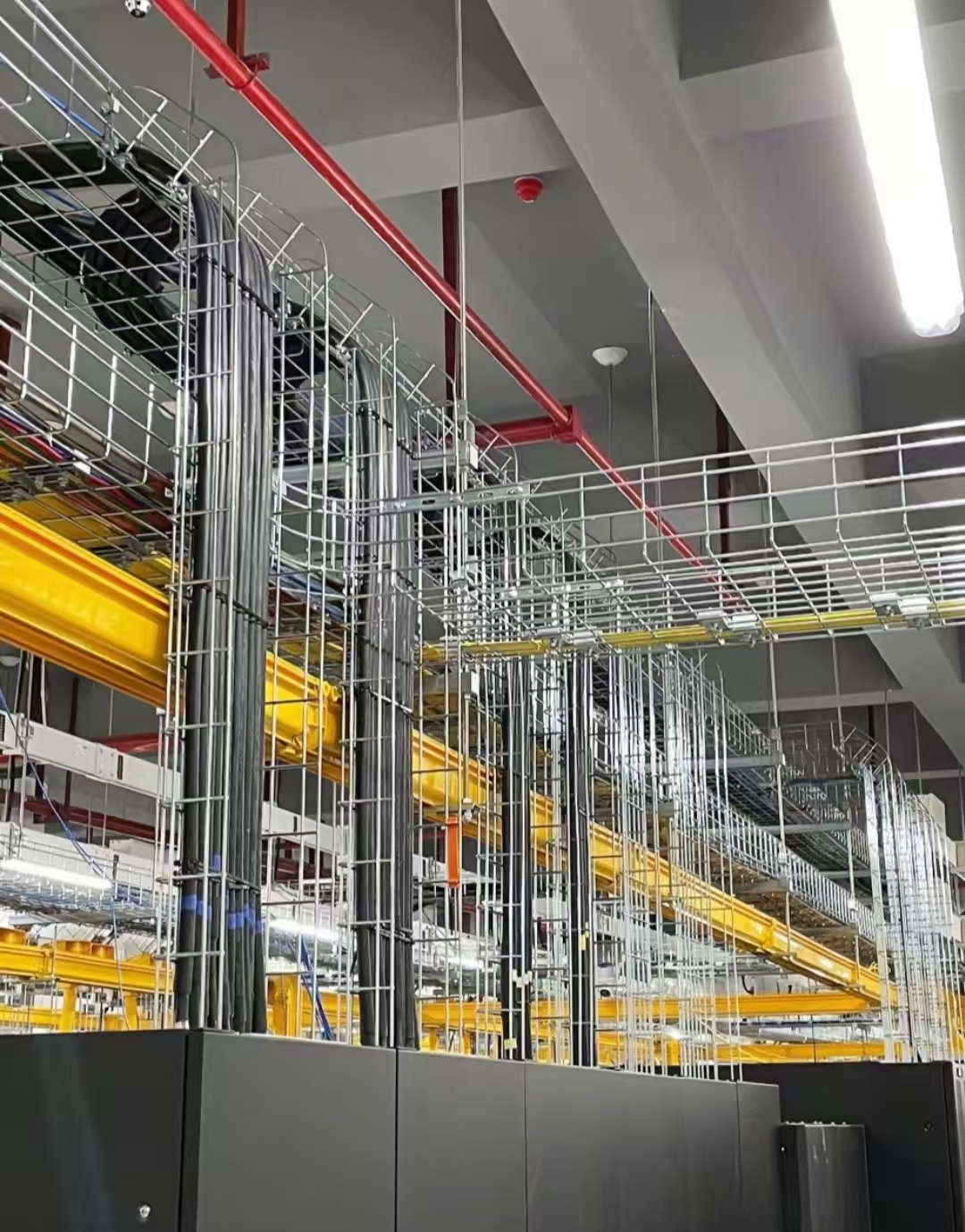

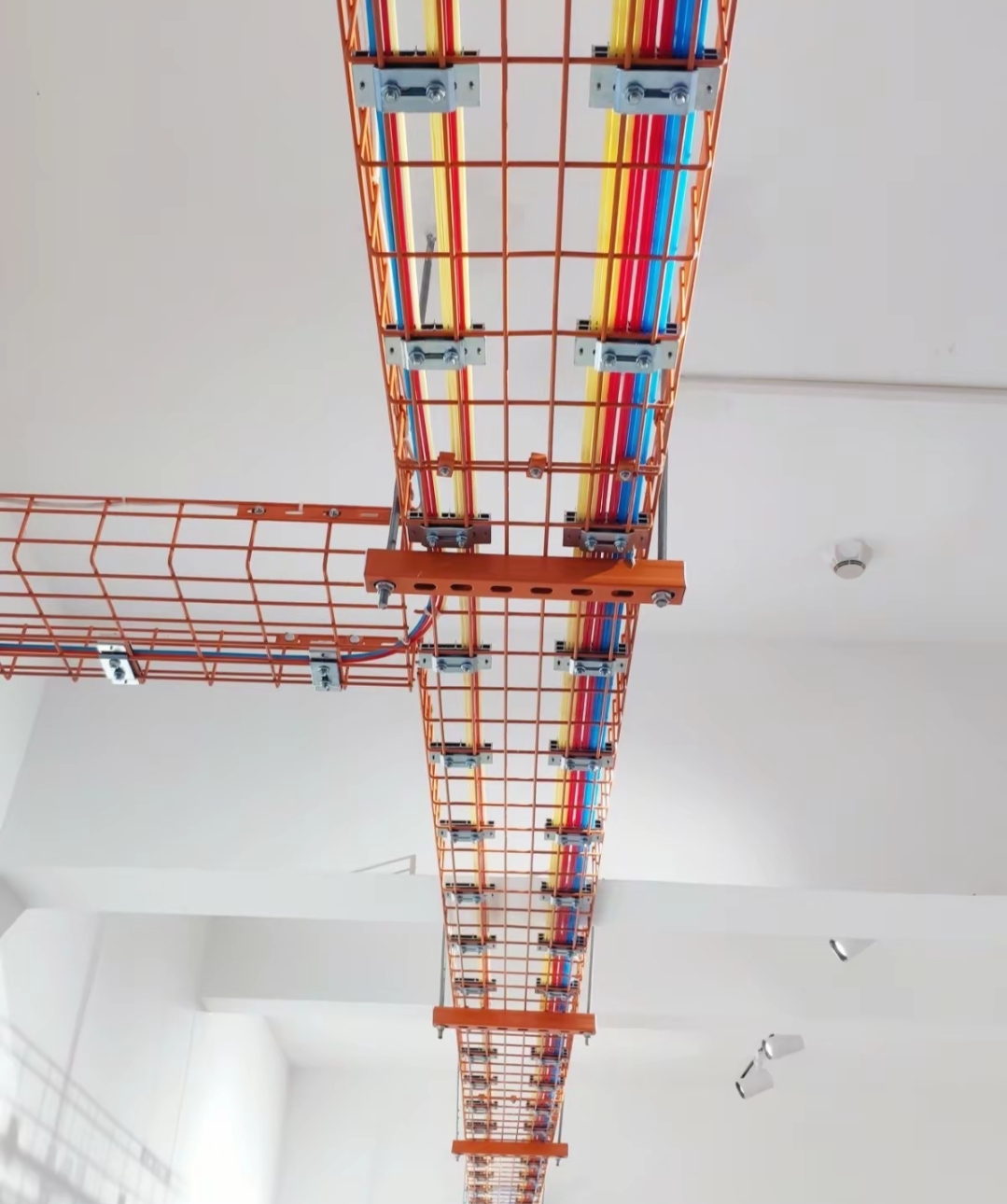

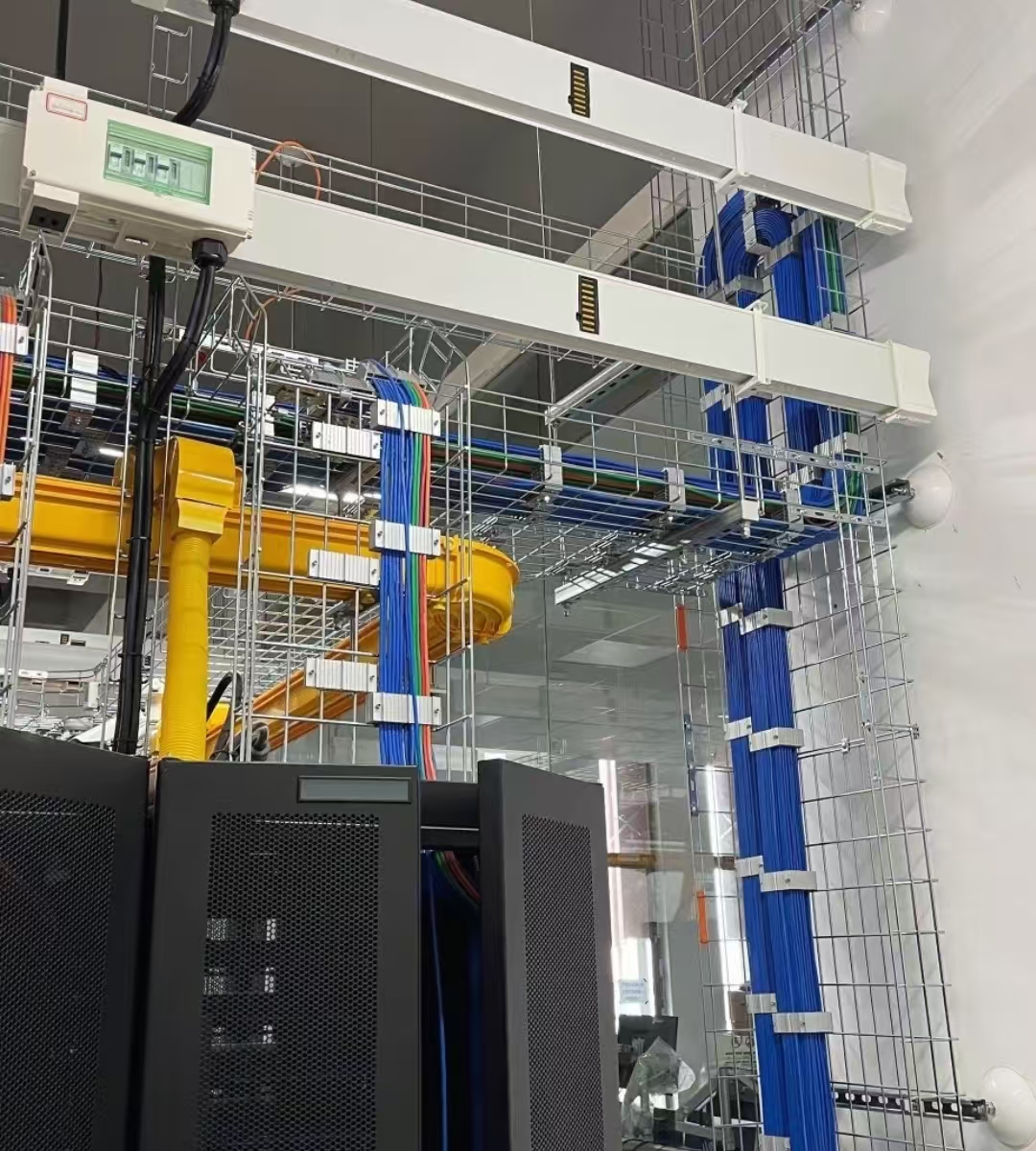

Wire Mesh Cable Tray Application Cases
