X-TEND Stainless Steel Cable Netting: A Versatile and Durable Solution for Modern Applications

Explore the versatility of X-TEND stainless steel cable netting (Webnet), a high-performance material engineered for durability and flexibility. Learn about its applications in architecture, industry, and design, backed by technical specifications and weight charts.

1. Engineering Excellence: Structure and MaterialX-TEND mesh is fabricated using AISI 316 stainless steel, renowned for its corrosion resistance and durability in harsh environments. The cables are interlinked using specialized clamps—either tinned copper (CX) or stainless steel (CXE/CXS)—through a unique swaging process. This method ensures a stressable yet flexible mesh structure, capable of adapting to both two- and three-dimensional configurations. Unlike traditional welded meshes, X-TEND retains its shape indefinitely, resisting deformation under tension or environmental stress.

2. Applications Across IndustriesThe versatility of X-TEND mesh makes it ideal for diverse scenarios:

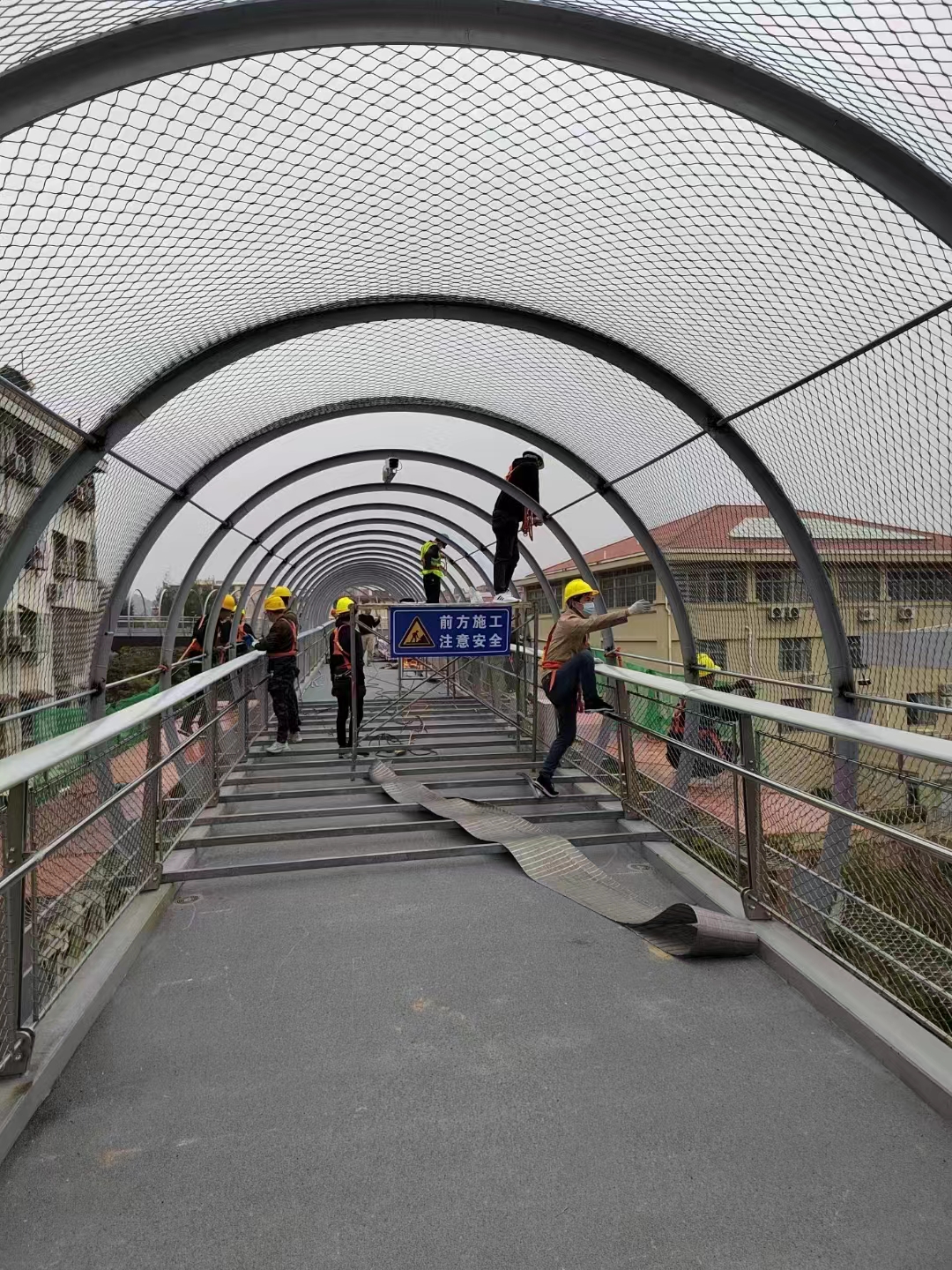

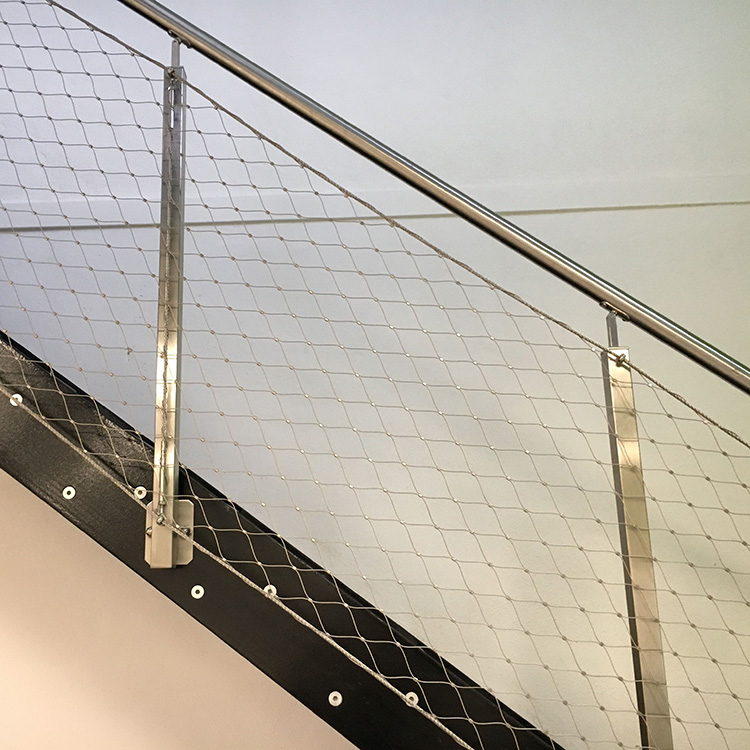

• Architectural & Construction: Used in façades, stair railings, and safety barriers, offering transparency and structural integrity.

• Decorative Design: Creates striking artistic installations, room dividers, or window curtains in commercial and residential spaces.

• Industrial Solutions: Serves as filter meshes in wastewater treatment, protective screens for machinery, and cages for animal enclosures.

• Outdoor & Leisure: Durable barbecue grills, zoo enclosures, and sports facility fencing benefit from its weather-resistant properties.

3. Low Maintenance, Long LifespanX-TEND requires minimal upkeep due to its corrosion-resistant AISI 316 steel composition. Routine cleaning with water and mild detergent is sufficient to maintain its appearance, even in coastal or high-humidity regions.

4. Weight SpecificationsBelow is a reference table for X-TEND mesh weights based on cable diameter and mesh opening sizes:

Note: Custom configurations are available for specialized projects.

5. Types of X-TEND Mesh

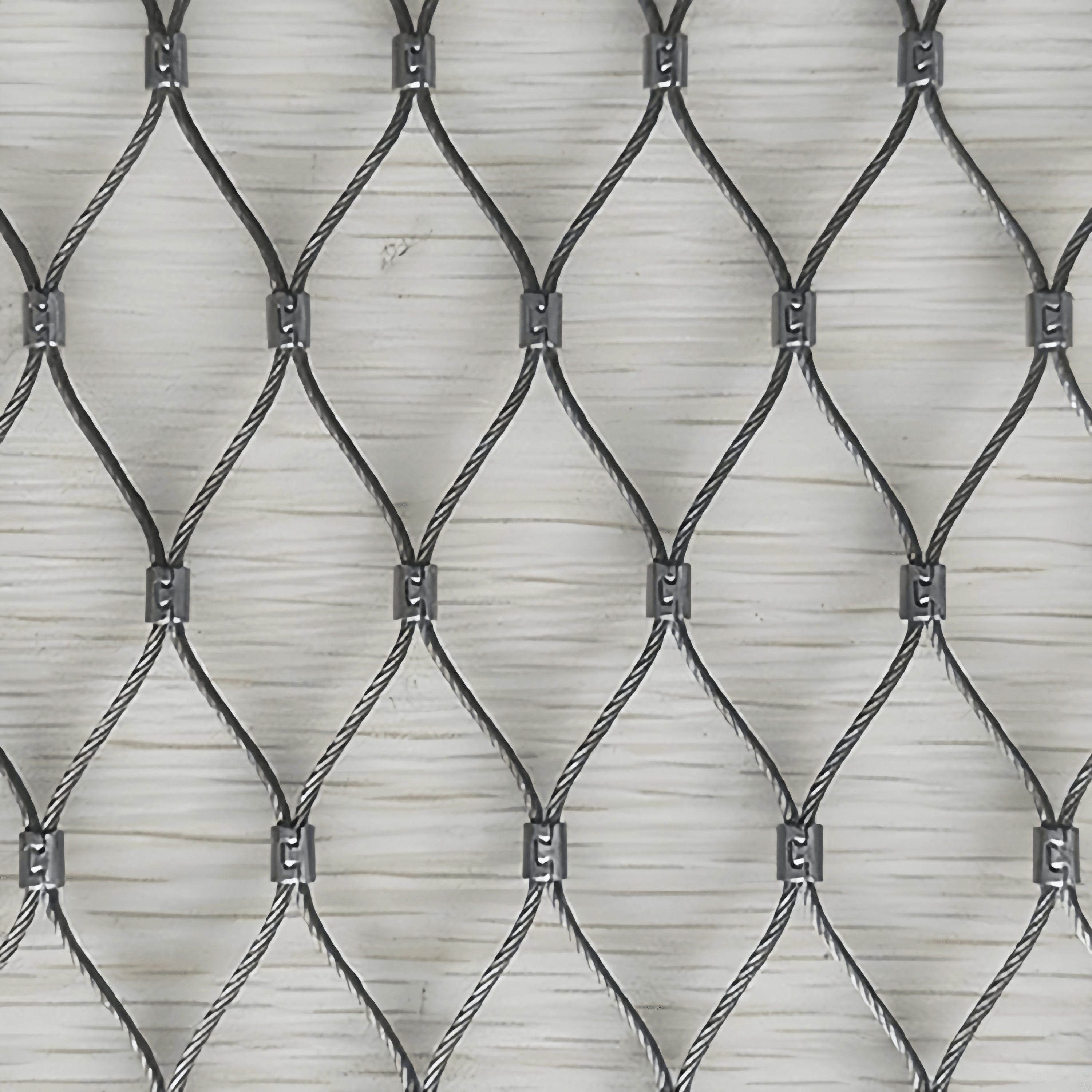

• Ferrule Mesh: Smooth, swaged clamps ensure a clean finish, ideal for architectural and decorative uses.

• Knotted Mesh: Offers enhanced rigidity for heavy-duty applications like industrial screens or safety barriers.

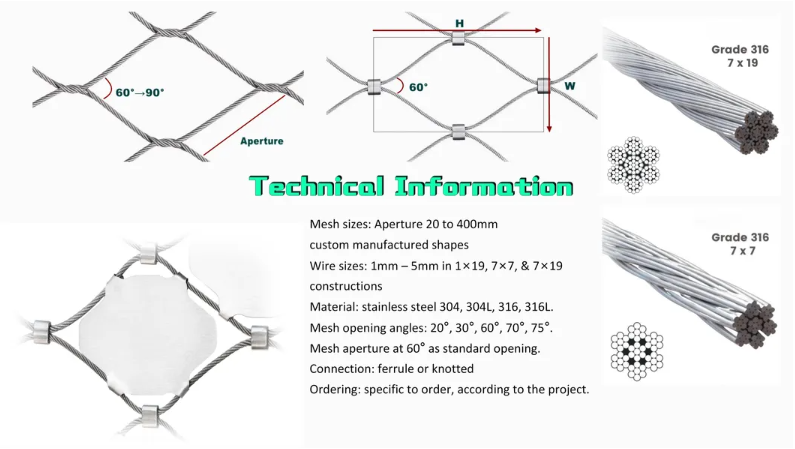

Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.

MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °

The ferrule remains a timeless classic – ​​highly versatile, flexible, and economical​​, particularly for applications requiring ​​small rope diameters​​. Each sleeve is precision-crafted in-house by our ​​skilled workers​​ through a ​​specially developed process​​ that ensures unmatched durability and consistency.

For projects where ​​design aesthetics​​ and ​​cost-efficiency​​ are non-negotiable, ​​Webnet with sleeves​​ delivers the ideal solution. It combines architectural elegance with budget-conscious performance, making it adaptable to both intricate designs and large-scale installations.

The knotted net achieves ​​crystal-clear transparency​​ compared to sleeved versions while ​​matching their strength values​​ – delivering proven reliability without compromising structural performance. What’s more, it ​​eliminates distracting glare​​ often caused by metallic sleeves, maintaining visual clarity in all lighting conditions.

This makes Sleeveless Webnet a reliable choice for situations such as:

High-strength protective barriers where unobtrusive security is required
Zoo animal extinction with extremely high visibility to provide visitors with a natural viewing experience
Designed for uncompromising performance, our Sleeveless Webnet combines structural integrity with minimalist design – perfect for applications that demand security and aesthetic sophistication.
