Reverse Dutch Weave Mesh: Engineering Superiority in High-Stress Filtration

Although Plain Dutch Weave (PDW) and Reverse Dutch Weave (RDW) are derived from Dutch weaving techniques, their construction concepts are fundamentally different:

This asymmetric engineering makes RDW the choice for extremes where PDW fails.

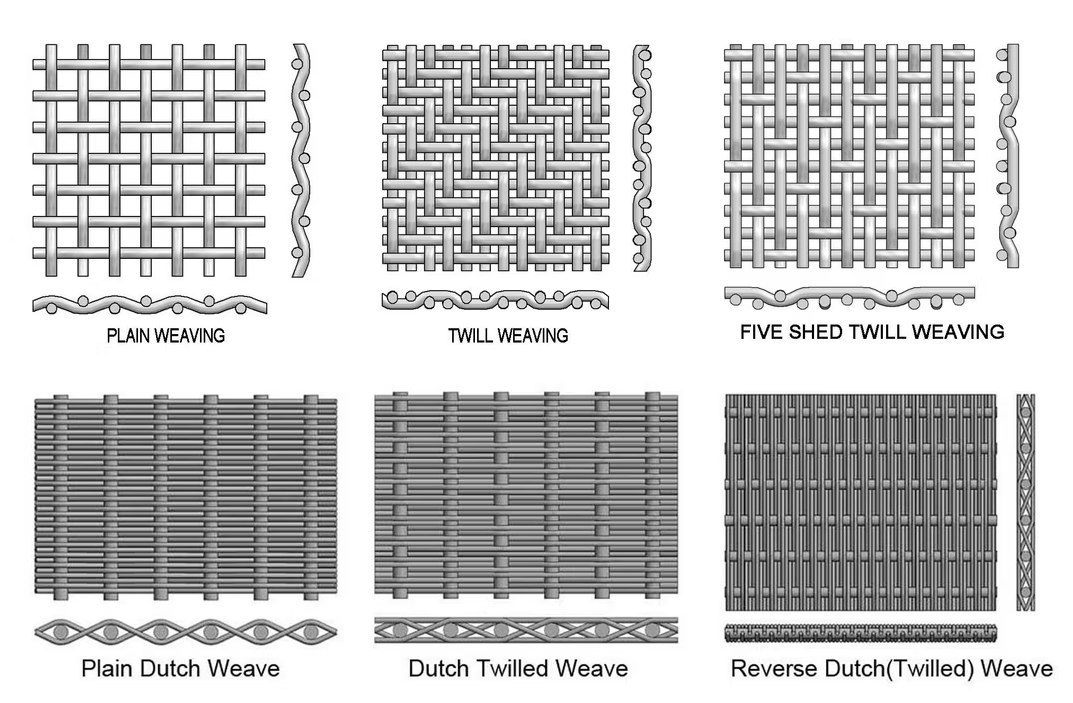

Reverse Dutch Weave (RDW) Weave type. Reverse Plain Dutch Weave(RPDW) and Reverse Twilled Dutch Weave(RTDW)

Reverse Dutch Weave: 3 Defining Technical Advantages

1. Warp-Dominant Structural Integrity
RDW’s densely packed thin warp wires create a rigid filtration surface, while thick weft wires act as cross-bracing reinforcements. This delivers:

• Belt Flex Endurance: Withstands repeated bending in vacuum belt filters without pore distortion

• Centrifugal Stability: Maintains pore geometry at >10,000×g forces (vs. PDW’s 3,000×g limit)

• Backflush Resistance: Absorbs 15-bar pressure spikes in leaf filters without wire fatigue

2. Absolute Micron Precision
The fine warp wire density enables:

• True pore size control down to 21 μm absolute

• <±3% pore deviation vs. PDW’s ±10% nominal rating

• Anti-blinding surface for viscous fluids (e.g., starch slurry, polymer solutions)

3. Multi-Threat Material Resilience
RDW outperforms PDW in hostile environments:

• Abrasion Resistance: 5x longer life in mining slurries (ASTM G65 testing)

• Chemical Immunity: Handles pH 1-14 extremes (PDW degrades below pH 3)

• Thermal Stability: Operates continuously at 650°C vs. PDW’s 480°C limit

Industrial Applications Leveraging RDW’s Unique Advantages

① Mining & Minerals Processing

• Belt Filter Dewatering: RDW belts achieve 25% faster cake drying than PDW in iron ore concentrators due to warp strength preventing elongation.

• Centrifuge Liners: Survives abrasive coal tailings separation at 12,000×g with zero pore walk.

② Pharmaceutical & Food

• Crystallization Filters: RDW’s 40μm absolute rating ensures >99.97% API particle retention in vaccine production (FDA CFR 211.65 compliant).

• Edible Oil Clarification: Prevents blinding in palm oil filtration with CIP compatibility (NaOH/PVDF cleaning).

③ Energy & Chemicals

• Electrolyte Filtration: RDW cartridges capture 30μm anode debris in Li-ion battery slurry with NMP solvent resistance.

• Acid Scrubber Meshes: Handles 70% H₂SO₄ mist filtration at 80°C where PDW warps.

④ Emerging Tech Applications

• Green Hydrogen: RDW diffuser layers in PEM electrolyzers tolerate 200-psi hydrogen embrittlement.

• Carbon Capture: Structured packing in amine scrubbers resists amine-induced stress corrosion.

Why Leading Industries Choose RDW Over Dutch Weave

Material Selection Guide

Upgrade to RDW – Where Precision Meets Endurance
